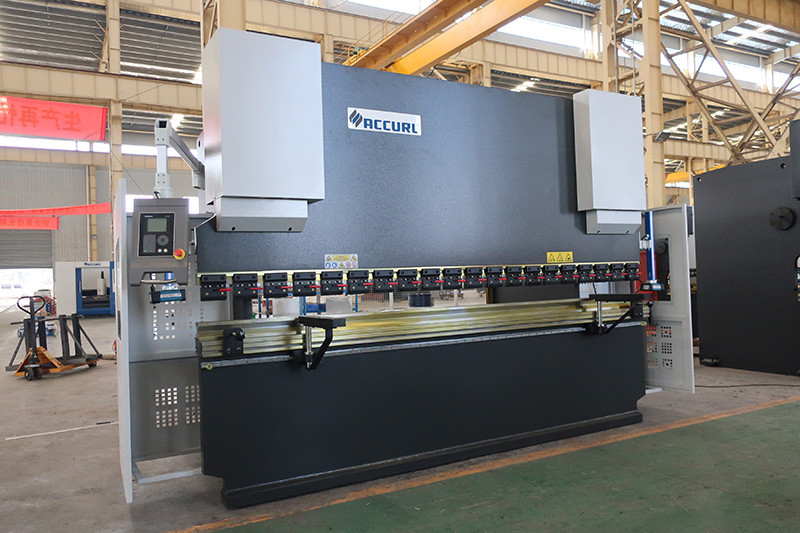

The whole structure of the hydraulic press brake:
- Totally European design, streamlined looking,Monoblock,Welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.
-CNMazak PRESS BRAKE incorporates E210 or DELEM DA41 CNC controls offer not only failsafe operation of the vital operations of the machine,but also offer the operator considerable assistance in carrying out the entire bending process.
- High accuracy,high efficiency,simple and convenient operation,good performance, favorable price and best service.
- Provides CNC control of standard 2 axes (Y and X) with manual R axis.
1. Hydraulic system:
- Adopt integrated hydraulic control system, more reliable and easy for maintenance.Hydraulic system is from Bosch – Rexroth,Germany.
- Extremely reliable and precise Bosch – Rexroth valves are used for the regulating circuit. Every complete working cycle can be achieved through the control of hydraulic valve.
- All seals in cylinder is PARKER from USA,the most famous brand,good quality and high performance
- Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
Being able to work under rated load continuously,stable working and high precision.
2. Electrical system and the safety interlock:
- Electrical panel with cooling system designed to meet CE Standards and composed of automation and electrical equipments with SIEMENS
-Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
- Front Side Covers with safety switches, Back light safety guards (Category-4),Foot pedal conforming to CE regulation.
- The machine by the European Union CE certification and ISO quality system certification
3. Synchro control system:
- Slide synchro system:adopt steel torsion bar synchro system, simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.
- 2 ends of slide has 2 synchro fork which make,The system uses upper die compensation to improve the brake precision.
- The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
4. Bending depth adjustment and RAM structures:
- The bending accuracy and consistency of the repeatability are achieved by a simple mechanical system of adjustable depth Automatic (digit readout) and motorized (E210 or DA41 CNC Control) Adjustable.
- Can move the ram up slowly,which allows the operator to control work piece conveniently.
- Universal fixing-surface of the upper tool can be meeting with the clamping requirement of the tool farthest.
- Hardened and ground standard sectioned top and 4V-Die bottom tools (4x1000 mm sections).
5. Servo motorized Backgauge (standard)
- CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
- Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
- High-precision ball screw and linear guide-way.Particular finger-stop design,enlarge the range of back gauge.
|Weight (t)||Overall Dimensions|
(L W H) (mm)
1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.
2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.
3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.
4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.
5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: press brakeWC67Y-100T/2500
Machine Type:Press Brake
Raw Material: Steel Bar
Material / Metal Processed:Carbon Steel
Extra Services: Machining
After-sales Service Provided: Engineers available to service machinery overseas
Nominal pressure: 1000KN
Length of table: 2500mm
Distance of column: 2050mm
Ram stroke: 140mm
Open height: 395mm
Throat depth: 320mm
Overall dimension: 2600*1800*2540mm
Main motor power: 7.5Kw
