promotion WC67Y hydraulic sheet metal press brake , bending machine for aluminum profile

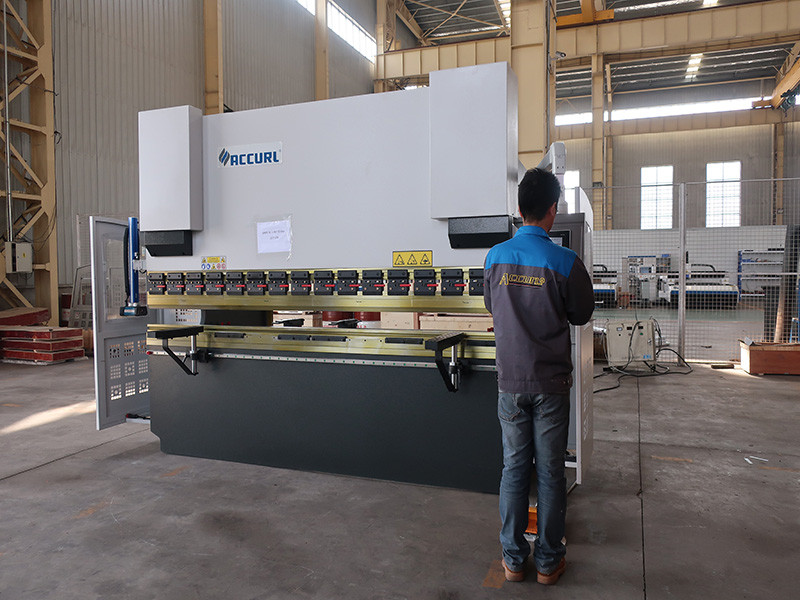

hydraulic press brake wc67y-160 3200

Features

1. All Steel Welded, Vibration eliminate stress, high mechanical intensity, good rigidity.Hydraulic upper transmission, steady and reliable.
2. Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision.
3. Ensure the high control precision, bending accuracy and repositioning accuracy are also reach to the high level.
Back gauge can be multi-axes controlled.
4. Back gauge distance, upper ram stroke can be adjusted by motor-drive,manual operation micro-adjust equipment, numerical display.
5. Our hydraulic press brake bending machine worktable full deflection compensation
6. Adopt integrated hydraulic system, more reliable and easy for maintenance.
7. Travel limit protection, full machine guarding with safety interlocker.
8. Mechanical synchronous mechanism and the complex compensation are designed so as to raise the workpieces precision.
9. Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays
10. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
11. Standard punches and dies. Front arm material support. Foot pedal with emergency stop.
12. Control system: Estun NC E21, CNC DELEM DA41, DA52, DA66T,etc.

Basic Main Components

cnc hydraulic plate press brake bending machine
1.NC display: Korea
2 Main Seal: PARKER
3.Main electronic element: Siemens/Schneider
4 Main Motor: Siemens
5 Group valev:JinYoujia/Rexroth
6.Conjugate internal gear pump: Sunny
7.Back gauge
8.Mould
9.Oil cylinder
10.Front Plate Feeding will be equipped
11.Free charge Standard Upper and Down Mould

Main Character and Function of hydraulic plate press brake bending machine

All the components of the cnc hydraulic plate press brake bending machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components.

The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction.

The cnc hydraulic plate press brake bending machine structure are composed by body frame, working table, slide block, main cylinder and backgauge.The advantage design and produce style can ensure the machine usage and high precision.The main produce procedure as below(all process under strictly inspection)
Plate stock----physical and chemical inspection----Plate Pre-treatment (Rust-Cleaning) --- CNC flame Cutting-- Cutting the welded joint----Group Welding----Gas Shielded Welding---Ageing treatment----Milling Planer working----The Assembly of finished products
The cnc hydraulic metal plate press brake bending machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine.

The cnc hydraulic metal plate press brake bending machine is greatly enhanced in anti-torque and electronic load resistance. cnc hydraulic press brake bending machine can normally work in full loaded situation. Working table, Upright Column, Crossbeam and Ram are good and high in design rigidity. Little deformation between the working table and ram when work to guarantee good straightness and uniformity in angle.

Machine’s main components under guaranteed quality or trustable company

The cnc hydraulic metal plate press brake bending machine motor and electronic system elements are all composed from Siemens or Schneider
Dies can be designed under clients’ requirement.
Oil pump can be used from China chengjie enterprise who is used in China’s Aircraft industry.Or we can use Germany ECKERLER enterprises.
The seal will be from USA Parker or Japan Valqua company.
The hydraulic system and valve optional Germany BOSCH company.
The security protection equipment: We equipped protect fence to avoid any penetration inside and foot controller with emergency control button

WC67Y/K Series cnc hydraulic metal plate press brake technical parameter

Type	Norminal force	Worktable length	Poles distance	Throat depth	Stroke	Max.open height	Main power	Dimension
	KN	mm	mm	mm	mm	mm	KW	LWH(mm)
30T/1600	300	1600	1280	230	80	210	4	17009501750
30T/2000	300	2000	1580	230	80	210	4	21009501800
40T/2200	400	2200	1775	240	100	320	4	230011501950
40T/2500	400	2500	1975	240	100	320	4	260012001950
50T/2500	500	2500	1975	230	100	320	5.5	260013002050
63T/2500	630	2500	1975	250	120	320	5.5	260013002180
63T/3200	630	3200	2560	250	120	320	5.5	330013502200
80T/2500	800	2500	2050	300	120	320	7.5	260014502200
80T/3200	800	3200	2580	320	120	320	7.5	330015002250
80T/4000	800	4000	3000	320	120	320	7.5	415015002300
100T/2500	1000	2500	2050	320	120	320	7.5	330015502450
100T/3200	1000	3200	2600	320	120	370	7.5	330015502500
100T/4000	1000	4000	3000	320	120	370	7.5	415016002500
125T/3200	1250	3200	2580	320	120	370	7.5	330016002500
125T/4000	1250	4000	3000	320	120	370	7.5	415016002550
160T/3200	1600	3200	2600	320	200	460	11	330017002600
160T/4000	1600	4000	3000	320	200	460	11	420017002600
160T/5000	1600	5000	4000	320	200	460	11	520018002700
160T/6000	1600	6000	4940	320	200	460	11	620018002800
200T/3200	2000	3200	2600	320	200	460	11	330018002600
200T/4000	2000	4000	3000	320	200	460	11	420019002800
200T/5000	2000	5000	4000	320	200	460	11	520019503000
200T/6000	2000	6000	5000	320	200	460	11	620019503300
250T/3200	2500	3200	2500	400	250	590	18.5	330020003300
250T/4000	2500	4000	3000	400	250	590	18.5	420020003400
250T/5000	2500	5000	4000	400	250	590	18.5	520020003400
250T/6000	2500	6000	5000	400	250	590	18.5	620020003400
300T/3200	3000	3200	2530	400	250	590	22	330023003550
300T/4000	3000	4000	3000	400	250	590	22	420024003700
300T/5000	3000	5000	4000	400	250	590	22	520024003800
300T/6000	3000	6000	5000	400	250	590	22	620024003800
400T/4000	4000	4000	3000	400	250	590	30	420026004000
400T/5000	4000	5000	4000	400	250	590	30	520026004100
400T/6000	4000	6000	5000	400	250	590	30	620026004300
500T/5000	5000	5000	4000	400	250	590	45	520028004300
500T/6000	5000	6000	5000	400	320	590	45	620033004500
600T/4000	6000	4000	3000	400	320	590	55	420033004000
600T/6000	6000	6000	5000	400	320	590	55	630033004500
800T/6000	8000	6000	5000	400	320	590	55	630035006000

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL press brake
Model Number: WC67Y-80T/3200 hydraulic bending machine for metal plate press brake
Machine Type:Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Stainless Steel
Power: Hydraulic
Automation: Automatic
Extra Services:Heat Treating
Certification: ISO 9001:2000
After-sales Service Provided: Engineers available to service machinery overseas
Model type: hydraulic press brake
Column spacing: 1280mm
Throat depth: 200mm
Slider stroke: 80mm
Max.openging height: 190mm
Main motor power: 3KW
Dimension(L*W*H): 1700*900*1650mm
Color: Optional
Application: Die Making Die Cutting Bending Machine
Warranty: 2 Years
