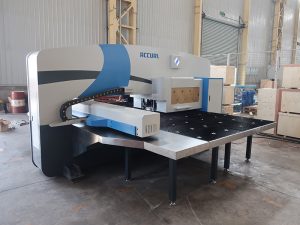

siemens system cnc turret punching machine,automatic hole punching machine cnc punch press price

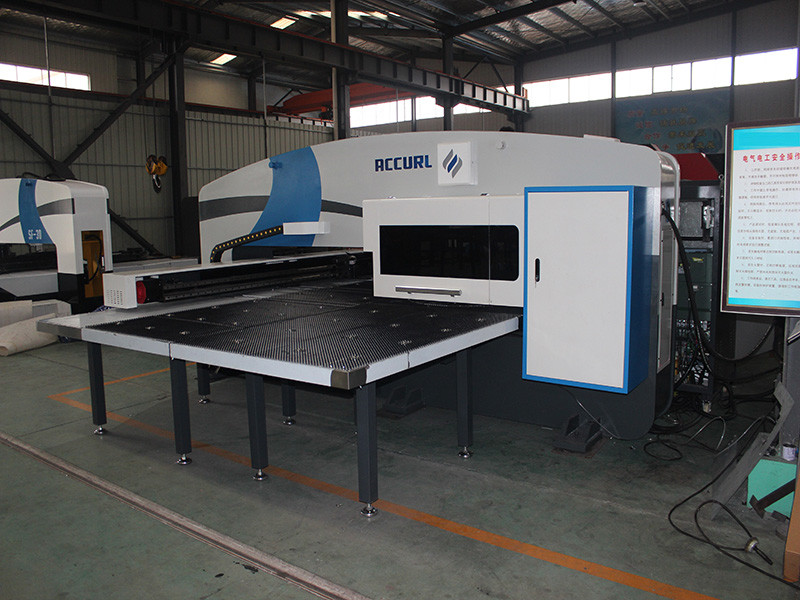

cnc hydraulic turret punch press



2: Working table with balls brush which can protect the surface of workpiece

3: Using the most popular long guide tooling with quick and easy installation

4: Designing drawing in Autocad

5: Connected the design drawings in U disk to the controller and it will generate the programs automatically

6: CNC controller from SIEMENS and it is Stable and reliable

7: quick positioning of work piece

8: Pneumatic clamps which are Full floating

9: Punching with small step distance which is 20mm and the speed is 220~260 Times per minute

10: Machine have 32 working stantions,variations of punching holes

11: cross beam feeding

12: Punching with big step distance which is 40mm and the speed is 100~120 Times per minute

13: Tolerance for punched holes reach +/-0.1mm

14: Punching with small step distance which is 7mm and the speed is 220~260 Times per minute

15: Porcessed samples shows


No.NameUnitTechnical parameters
 Model ZRT300-24Z


Punch forceKN300
2Max sheet working sizemm2500*1250
3RAM strokemm32
4Max sheet thicknessmm≤5
5Max punching diamm88.9
6Tool stationsentires32
7Rotating workersquantityoptional
8Punching accuracymm±0.1
9Max hit speedhpm260
10Maximum processing speedm/min60
11Frame type Closed O-type
12Throat depthmm1570
13Control axisentires4
14Turret rotationr/mm30
15Air pressureMpa0.55
16Pneumatic grippingentires2
17Working VoltageV380±5%
19RAM drive Servo transmission
20Rating Powerkw10

Our Services

Technique support and service

Support twice operating training: first one is at my factory during the processing time, second one at the buyer's factory during the re-installation/testing period. We will send our engineers go to buyer's factory help to re-install this machine if customer required, and the customer need to pay for heir flight tickets(go and back), room and board, local travel cost.
After sales service
1. After finished the producing of the machine, we will inform the buyer to inspect the machine in the manuafacture's factory;

2. We provide some documents and foundation drawing within 7 days after contract date;
3. If need seller to guidance the installation, adjustment and trail, the seller will be responseble for the charges within home, and other charges on board should be paid by the buyer;
4 The machine's warranty period is three years. The supplier will take responsible for the machine if there comes any quality problem. During warranty period, the buyer should handle small problems which are easy to overcome. The seller will give a clear reply in one day after the serious problems occur.


How about your quality? We are worry about the quality?
RE: before we start we did research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard. Our machines distribute worldwide to about 40 countries. And where are our machines, there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount?


• We always provide high quality machine, oversea market is more important and difficult than domestic market as the comminication time costing after sales, so as always,our machine has strict quality standard to make sure the machine can work more than the real warranty period. In this way, we will save a lot of energy and think in advance for the clients.

• We are sure to provide quality=price and price=quality products. The matched price and acceptable for the clients and durable for our machines. We welcome your negotiate with usand get a good satisfaction.
Why choose us?

1. We are China leading hydraulic press manufacturer.

2. Inspected by the Inspection Institution of Bereau Verita Certification.

3. 100% QC inspection before shipment.

4. Best quality and best service with competitive price.

Quick Details

Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: PST-300/24Z
Condition: New
After-sales Service Provided: Overseas service center available
Product name: siemens system cnc turret punching machine
Warranty: 2 years
Machine type: Mechanical
hole accuracy: +/-0.1mm
total power: 11kw
outline dimensions: 5000*4000*2100mm
Certification: CE ISO
machine structure: O-type
Function:Metal Processing
Application: Metal Sheet Stamping
