best price hydraulic metal sheet press brake machine for bending carbon steel Exported to Worldwide

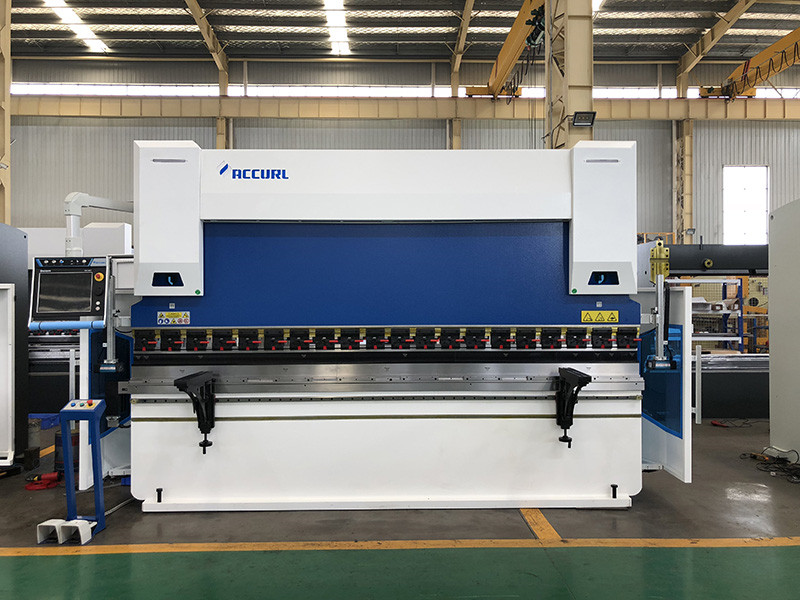

press brake machine for exporting

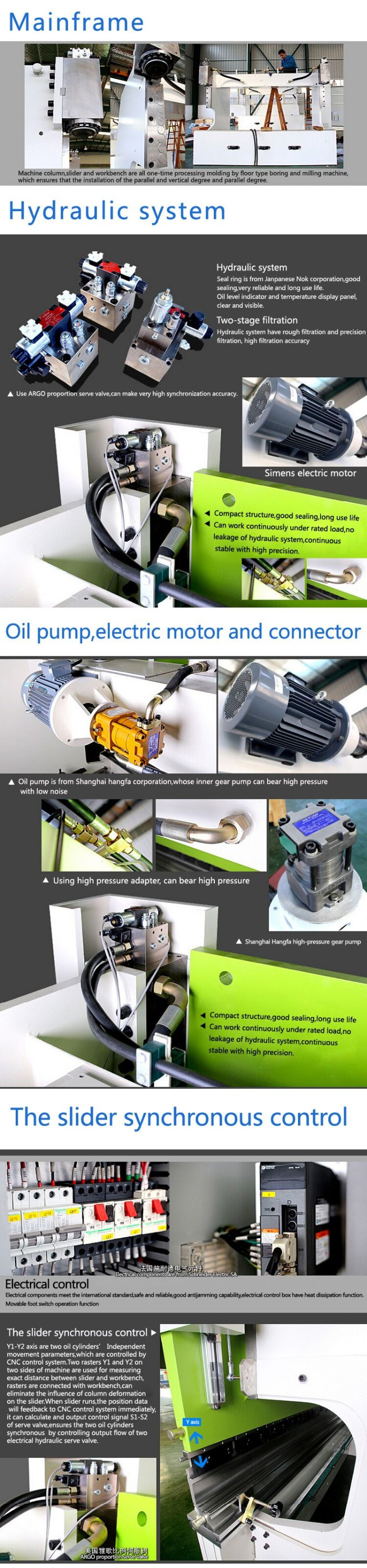

The whole structure of hydraulic cnc press brake/ tandem press brake

1. Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating toeliminate stress, high strength and good rigidity.
2. Mechanical torque system makes sure the synchronization of cylinders.
3. The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.
4. Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.

Standard Equipment of hydraulic cnc press brake/ tandem press brake

1. 3 & 4- axis Delem DA52s programming mode CNC control.

2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy

3.High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load

4.CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.

5.Light guards

6.Two micrometric backgauge finger-stops with lateral adjustment

7.Steel mono-block construction

8.Polished chrome plated and ground cylinders

9.Long stroke and large open height dimensions

10.High approach and return speeds for production bending.

11. Euro style quick release top tool holders with intermediaries including wedges for crowning

12. 88 degree sectionalised goose neck top tool

13. 4 way sectionalised multi vee bottom tool

14.Double footswitch control and pendant type control arm.

15.AKAS laser tooling guards

16.Electrically interlocked side guards

17.Electrically interlocked read access door

18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.

19.Side guard is standard meeting CE regulations.

Delem DA52s CNC Press Brake Control system

1.6,4” VGA colour LCD (TFT)

2.Numerical, one page programming

3.Quick, one-page programming

4.UP to 4 axes (Y1, Y2, and 2 auxiliary axes)

5.CNC Crowning control

6.USB, peripheral interfacing

7.Tool/material/product library

8.Servo, frequency inverter and AC control for backgauge axes.

Technical data

hydraulic CNC press brake
Modelpressurelength of working tabledidtance between housingsthroat deepthMax. storke lengthMax. open heightelectric powerMachine demenion
KNmmmmmmmmmmKWL*W*H(MM)
40T/2200400220017752501003205.52300*1500*2000
40T/2500400250019752501003205.52600*1500*2000
63T/2500630250020952501203605.52600*1600*2300
63T/3200630320025702501203605.53300*1600*2300
80T/3200800320025653201203607.53300*1700*2300
80T/4000800400031653201203607.54100*1700*2300
100T/32001000320025603201203607.53300*1800*2400
100T/40001000400031603201203607.54100*1800*2400
125T/32001250320025503201203607.53250*1920*2450
125T/40001250400034503201203607.54000*1920*2500
160T/3200160032002540320180440113300*1600*2600
160T/4000160040003140320180440114100*2000*2600
160T/6000160060004740320180440116100*2000*2600
2000T/3200200032002540320250530113300*2100*2800
200T/4000200040003140320250530154100*2100*2900
200T/5000200050003940320250530155100*2100*3000
250T/400025004000312040025056018.54100*2200*3500
250T/500025005000392040025056018.55100*2200*3500
250T/600025006000472040025056018.56100*2600*4000
300T/5000300050003910400250560225100*2600*4000
300T/6000300060004710400250560226100*2600*4000
300T/7000300070005620400250560227100*2600*4400
320T/7000320070005620400250560227100*2600*4400
350T/6000350060005100400250560306100*2600*4200
350T/7000350070005620400250560307100*2600*4500
400T/4000400040003100400300620304100*2700*3800
400T/6000400060004280400320620306100*2800*4200
500T/5000500050004100400630630375100*3000*4400
500T/6000500060004820400320630376100*3000*4700
500T/7000500070005620400320630377100*3000*4900
600T/6000600060004820400320630456100*2965*4700
600T/7000600070005620400320630457100*2965*4900

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y
Machine Type: Press Brake
Raw Material: Steel Bar
Material / Metal Processed: carbon steel /stainless steel and so on
Power: Hydraulic
Automation: Automatic
Extra Services: End Forming
Certification: CE/ISO
After-sales Service Provided: Engineers available to service machinery overseas
Name: Hydraulic Press Brake
Type: Hydraulic Bending Tools
Usage: Metal Sheet Rolling Cutting Bending
Application: Stainless Steel Strip Bending
Material: Q235
Warranty: 2 Years
Color: Customized
Keyword: Brake Press Machine
Function: Bending Alimunum Steel
Available bend profiles: Angle Bar
