famous brand QC12y/K 12X3200 hydraulic shearing machine with good quality

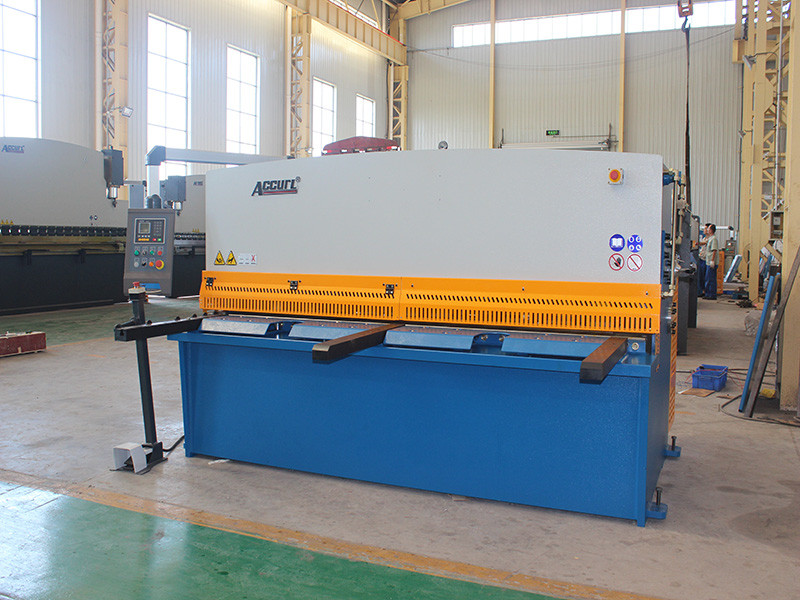

china famous brand shearing machine

Product Description

1. Characteristic and feature

l Assisting blade pedestal on worktable is convenient for micro adjustment.
l Rolling material support ball is provided on worktable, convenient operation.
l Using stepless adjusting structure to regulate the gap of blades, adapt to different thickness and materials.
l The adoption of four-side edge shearing blade prolongs the service life of blade.
l Regulating shearing process not only increases the production efficiency but also achieve the function of segment shearing.
l It is provided with counting function for shearing to decrease the numerous artifical counting.

2. Hydraulic system

l Advanced hydraulic integrated system is employed and the pipeline connection is minimized, to ensure the system reliability and safety.
l It is consisted of some pressure feed cylinders installed at support board in front of machine frame. Pressure head press down against the pull force of stress spring, press plate tightly. After finishing cutting, the cylinders are reset by the pull force of stress spring. The pressure is bigger as thicker as the thickness of plate.

3. Back gauge

Back gauge is fixed on up-cut board, pendulum up and down as up-cut board. Adjust back gauge by 0.55Kw motor, reduce speed through gear, and drive by control rod. Brake down the button "+" (or"_"), can adjust gauge to front or back. When mechanic adjustment cannot get the necessity valve, turn hand-wheel to demanding value, the adjustment of back gauge is convenient and reliability. When the length of cutting plate is longer than the max distance of back gauge, remove the back gauge to the least place, lift up the board by the incline surface of support frame, and can cut any length of plate.

4. Standard Single Axis NC controller

MD11-1 Functions:
l Programmable 10 jobs.
l Stroke counter function.
l Retract function.
l Power off Memorization
l X-axis Software Limitation
l Inch/MM.

5. Optional Accessories

- Ball screw Backague,linear way,Servo Motor
- CNC controller E200S,DAC310,DAC360 or DNC60G
- CE Safty Light

Technical data

QC12Y Swing beam Shear Technical Data
Model	Cutting Thickness	Cutting Length	Cutting Angle	Travel Time	Backgauge Stroke	Motor	Dimension (L x W x H)
	mm(450N/m2)	mm	°	Min-1	mm	kw	Mm
4 x 2500	4	2500	1°30′	16	20~500	5.5	3040 x 1550 x 1550
4 x 3200	4	3200	1°30′	13	20~500	5.5	3840 x 1550 x 1550
4 x 4000	4	4000	1°30′	10	20~600	5.5	4600 x 1700 x 1700
4 x 6000	4	6000	1°30′	5	20~800	7.5	6460 x 2100 x 2300
6 x 2500	6	2500	1°30′	15	20~500	7.5	3040 x 1710 x 1620
6 x 3200	6	3200	1°30′	12	20~500	7.5	3840 x 1710 x 1620
6 x 4000	6	4000	1°30′	9	20~600	7.5	4620 x 1850 x 1700
6 x 5000	6	5000	1°30′	8	20~600	7.5	5640 x 1900 x 2000
6 x 6000	6	6000	1°30′	5	20~800	18.5	6480 x 2100 x 2300
8 x 2500	8	2500	1°30′	11	20~500	7.5	3040 x 1700 x 1700
8 x 3200	8	3200	1°30′	8	20~500	7.5	3860 x 1700 x 1700
8 x 4000	8	4000	1°30′	8	20~600	7.5	4640 x 1700 x 1700
8 x 5000	8	5000	1°30′	8	20~500	7.5	5400 x 2400 x 200
8 x 6000	8	6000	1°30′	8	20~800	18.5	6480 x 2100 x 2350
10 x 2500	10	2500	1°30′	8	20~500	7.5	3040 x 1800 x 1700
10 x 3200	10	3200	2°	10	20~500	11	3860 x 2000 x 1700
10 x 4000	10	4000	2°	10	20~600	11	4650 x 2100 x 2000
10 x 6000	10	6000	1°30′	10	20~800	18.5	6500 x 2100 x 2300
12 x 2500	12	2500	1°40′	12	20~600	18.5	3140 x 2050 x 2000
12 x 3200	12	3200	1°40′	10	20~600	18.5	3880 x 2150 x 2000
12 x 4000	12	4000	1°40′	10	20~600	18.5	4680 x 2150 x 2000
12 x 5000	12	5000	2°	6	20~600	18.5	5800 x 2400 x 2400
12 x 6000	12	6000	2°	5	20~800	22	6900 x 2600 x 2700
16 x 2500	16	2500	2°30′	10	20~100	18.5	3140 x 2150 x 2100
16 x 3200	16	3200	2°30′	10	20~600	18.5	3880 x 2150 x 200
16 x 4000	16	4000	2°30′	10	20~800	37	4650 x 21580 x 2200
16 x 5000	16	5000	2°	6	20~100	18.5	5900 x 2600 x 2700
16 x 6000	16	6000	2°	5	20~1000	22	6900 x 2700 x 2700
20 x 2500	20	2500	2°30′	8	20~800	22	3440 x 2300 x 2500
20 x 3200	20	3200	2°30′	8	20~1000	22	4150 x 2350 x 2700
20 x 4000	20	4000	2°30′	5	20~1000	22	4850 x 2600 x 2400
20 x 6000	20	6000	2°30′	4	20~1000	37	6700 x 3000 x 3000
25 x 2500	25	2500	3°	8	20~1000	37	3200 x 2700 x 2900
25 x 3200	25	3200	3°	5	20~1000	37	4200 x 2400 x 2500
30 x 2500	30	2500	3°	4	20~1000	40	3300 x 2900 x 3000
30 x 3200	30	3200	3°30′	4	20~1000	40	4200 x 2500 x 2600
40 x 2500	40	2500	4°	3	20~1000	75	3200 x 3300 x 3200
40 x 3200	40	3200	4°	3	20~1000	90	4300 x 3300 x 3000

Basic Info.

Model NO.:QC12K 12x3200
Application:Machinery & Hardware
Type for Cutting Machine:Hydraulic Cutting Machine
Type for Fold-Bending Machine:Hydraulic Fold-Bend Machine
Certification:CE
Automation:Semi-Automatic
Condition:New
Type:Shearing Machine
Color:Customized
Motorized Backgauge:500mm
Cutting Angle:2°30′
Trademark:Accurl
Specification:CE
Origin:Anhui, China
HS Code:8462399
