building material steel plate material wc67y 300 ton 5000mm press brake supplier in China

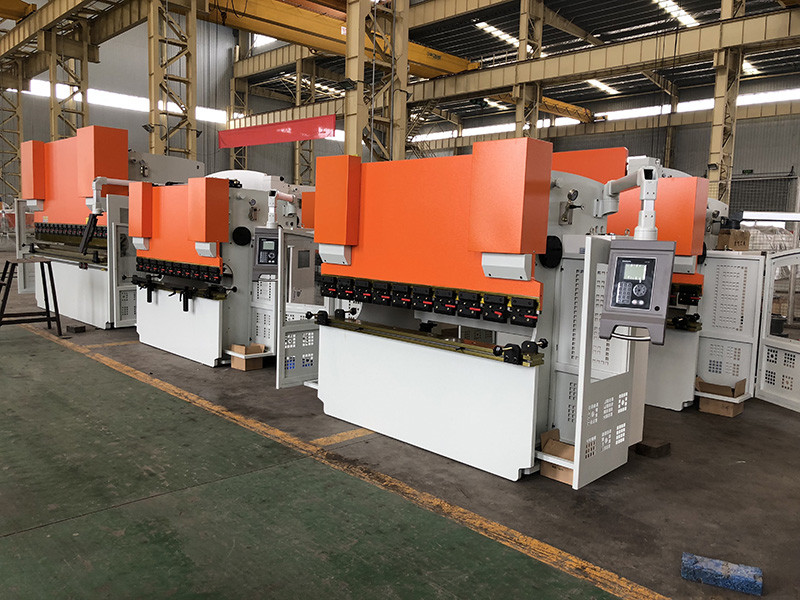

mini model press brake

Introduction of press brake


Press brake can be divided into manual press brake, hydraulic press brake. Manual press brake is divided into mechanical manual press brake and electric manual press brake, hydraulic press brake by synchronously and can be divided into: torsion axis press brake, electric-hydraulicpress brake.Hydraulic press brake according to the movement mode and can be divided into: down moving and up moving type

     SPECIFICATION OF PRESS BRAKE
ITEMS
PARAMETER
UNIT
Model
WC67Y-300X5000
set
Capacity
3000
KN
Max. Bending Length
5000
mm
between columns
4000
mm
Throat Depth
400
mm
Slide Stroke
250
mm
Max. Shut Height
530
mm
Strokes
≥3
times/min
Main Motor
22
KW
Weight
22000
KG
Outline Size
5500×2000x3450
mm

Main Features


1) The whole machine is in sheet plate welded structure, with internal stress eliminated by vibration aging technology,high strength and good rigidity og machine.

2) Double hydraulic oil cylinder is applied for upper transmission, prouded with, mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation, as well as high precision.

3) Electrical cintrol and manual fine-tuning, mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital diaplay device,easy and quick in use.

4) Upper dies is fitted with deflection compensation device.

E21

Backgauge and block control
Control for general AC motors, frequency inverter
Intelligent positioning/Stock counter
Holding/decompression time setting
Program memory of up to 40 programs
Up to 25 steps per program/One side positioning

Retract function/One key backup/restore of parameters
mm/inch

DA-52s features

*Quick, one page programming
*Hotkey navigation
*7” VGA colour TFT
*Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
*Crowning control
*Tool/material/product library
*USB, peripheral interfacing
*Advanced Y-axis control algorithms for closed loop as well as open loop valves

DA-66T features

*2D graphical touch screen programming mode
*3D visualisation in simulation and

*17" high resolution colour TFT

*Full Windows application suite
*Delem Modusys compatibility (module scalability and adaptivity)/ USB, peripheral interfacing
*User specific application support within the controllers multitasking environment
*Sensor bending & correction interface

E200

*A multi-step programing to run automatically, positioning in a row;
*Automatic way to avoid the backgauge with the expected workpieces interference;
*One-way location, the elimination of screw drive space;
*Duke / British system is available;
*Chinese and English menu operation;
*Automatic compensation of the location;
*Adequate storage space for the processing procedures;
*Memory function of power off action.

DA41

*Bright LCD display
*Beam stop control
*Backgauge control
*Angle programming
*Tool programming
*Retract function
*Up to 100 programs
*Up to 25 bends per program

Quick Details


Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y-300T/5000
Machine Type: Press Brake
Raw Material: Steel Bar
Material / Metal Processed: Stainless Steel
Power:Hydraulic
Automation: Manual
Extra Services: Machining
Certification: ISO 9001:2000
After-sales Service Provided: Engineers available to service machinery overseas
Bending length: 5000
Bending capacity:3000kn
Control Axes: X,Y
Throat Depth: 400mm
Main motor: siemens
Warranty: 2 Years
Product name: Hydraulic Cnc press brake Supplier in China
Application: Stainless Plate Bending
Weight:22000kg
Color: Customized

, , , , ,
