european standard delem DA52 auto hydraulic cnc press brake bending machine

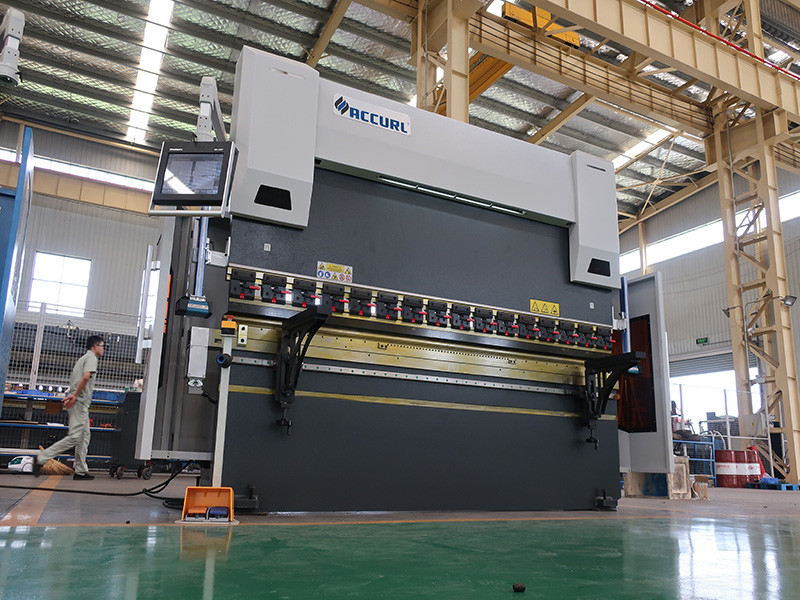

european standards press brake machine

Product Description

Main Features

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.

2.All CNMazak machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.

3. MB8 Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum levelwith its user friendly CNC controller and low cost hydraulic maintenance.

4. High quality and repetitive bending is obtained by using synchronized cylinders and valves.

5. Automatic axis referencing and calibrating when machine is turned on.

6. Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm

7. Well-known top and bottom tool brands are long lasting stiffened and provide precise bending.Silent high pressure pump.

Standard Equipment

1. 3 & 4- axis Delem DA52s programming mode CNC control.

2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy

3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load

4. CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.

5. Light guards

6. Two micrometric backgauge finger-stops with lateral adjustment

7. Steel mono-block construction

8. Polished chrome plated and ground cylinders

9. Long stroke and large open height dimensions

10. High approach and return speeds for production bending.

11. Euro style quick release top tool holders with intermediaries including wedges for crowning.

12. 88 degree sectionalised goose neck top tool

13. 4 way sectionalised multi vee bottom tool

14. Double footswitch control and pendant type control arm.

15. AKAS laser tooling guards

16. Electrically interlocked side guards

17. Electrically interlocked read access door

18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.

19. Side guard is standard meeting CE regulations.

Delem DA52s CNC Press Brake Control system

1. 6,4” VGA colour LCD (TFT)

2. Numerical, one page programming

3. Quick, one-page programming

4. Up to 4 axes (Y1, Y2, and 2 auxiliary axes)

5. CNC Crowning control

6. USB, peripheral interfacing

7. Tool/material/product library

8. Servo, frequency inverter and AC control for backgauge axes.

The best bending results You can bend longer and deeper parts with standard SC/MB8-Bend Series.

Main Specification

Models	Nomal Pressure (Kn)	Length of Table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (Kw)	Weight (t)	Overall Dimensions (L W H) (mm)
WC67K-63/2500	630	2500	2000	320	150	380	5.5	5	28751650*2350
WC67K-63/3200	630	3200	2700	320	150	380	5.5	5.5	380016502450
WC67K-100/3200	1000	3200	2700	400	180	440	7.5	7.5	381017502530
WC67K 125/3200	1250	3200	2700	400	180	440	7.5	8.2	382018002530
WC67K-125/4000	1250	4000	3200	400	180	440	7.5	9	460018002580
WC67K 160/3200	1600	3200	2700	400	180	450	11	10.8	383018702560
WC67K 160/4000	1600	4000	3200	400	180	450	11	11.5	461019202700
WC67K-200/3200	2000	3200	2700	400	180	450	11	12.5	390019202560
WC67K-200/4000	2000	4000	3200	400	180	450	11	13.8	462019502700
WC67K-200/6000	2000	6000	4800	400	180	480	11	18.5	608019502900
WC67K-250/3200	2500	3200	2700	400	200	480	15	15	390021502950
WC67K-250/4000	2500	4000	3200	400	200	480	15	16.5	408021503000
WC67K-250/5000	2500	5000	4000	400	250	560	15	17.5	508022003250
WC67K-250/6000	2500	6000	4800	400	250	560	15	20	608022003400
WC67K-300/4000	3000	4000	3200	400	250	560	22	19	408022003200
WC67K-300/5000	3000	5000	4000	400	250	560	22	21	510022003300
WC67K-300/6000	3000	6000	4800	400	250	560	22	24	620022003500
WC67K-400/4000	4000	4000	3200	400	320	630	30	25	410024003500
WC67K-400/5000	4000	5000	4000	500	320	630	30	28	520026003700
WC67K-400/6000	4000	6000	4800	500	320	630	30	38	620026504800
WC67K-500/4000	5000	4000	3200	600	320	630	37	40	420028004600
WC67K-500/5000	5000	5000	4000	600	320	630	37	45	520028004900
WC67K-500/6000	5000	6000	4800	600	320	630	37	50	620028005200
WC67K-600/5000	6000	5000	4000	600	320	630	45	58	520030005300
WC67K-600/6000	6000	6000	4800	600	320	630	45	63	620030005600
WC67K-800/5000	8000	5000	4000	700	350	800	55	75	520035005600
WC67K-800/6000	8000	6000	4800	700	350	800	55	85	620035005800
WC67K-1000/6000	10000	6000	4800	700	400	800	55	105

Packaging & Shipping

1.We use the strong steel tray, protect the machine and can be easily used forklift to unloading machine .

2. We provide free the entire Marine insurance, avoid machine damage caused damage to the customer!!

Our Services

1. Our provide oriented after-sales service including the oversea engineers trainning available and also international dealer center for any emergency guidance.We have established worldwide network to guarantee our timely response for your any demand no matter where are you.

2. We welcome engineers from your side to learn the technical design and normal maintenance here,this will help your easy in understanding and helpful if you need to be our dealer.

3. However,don't worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing docments to deepen your knowledge and understanding.

4. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy contact us if any assistance needed.

5. Through all the ways,we will guarantee the service quality and ensure you will be well helped anytime anywhere.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Machine Type: Press Brake
Raw Material: Steel Bar
Material / Metal Processed: Carbon Steel
Power: Hydraulic
Automation: Automatic
Extra Services: Machining
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Nominal pressure: 630KN
Length of table: 3200mm
Distance of column: 2670mm
Throat depth:250mm
Ram stroke:100mm
Open height: 380mm
CNC axes:3+1
Overall dimension:3300*1725*2355mm
Main motor power: 5.5Kw
