automatic steel bending machine for iron plate hydraulic sheet press brake price

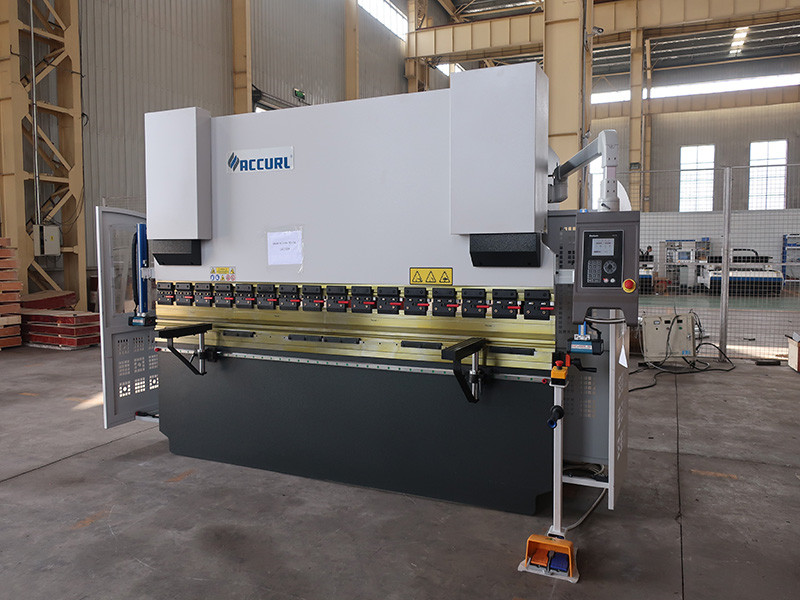

china made sheet metal press brake

Product Description


CNC system control
hydraulic top-drive,steadiness and reliability
High precision
Motorized-adjusting device,easy to operate.

Product Features of sheet bending machine price


1.All steel welded structure, vibrating treatment of ageing for removal of internal stress with high strength and good rigidity.

2. hydraulic transmission system, stepless pressure regulation and using high quality imported sealing ring ,stable and reliable performance

3. Torsion shaft forced synchronization of mechanical limit stopper balance with high precision.

4.Rear stopper and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.

5. Upper die is equipped with winding degree shim mechanism.(More than 250ton belong to working compensation mechanism)

6. Machine tool equipped with safety barrier and open power device, improved the security of the operation.

Formula of Pressure Calculating press brake


1. Thickness *thickness *65*length/thickness*8 for example:
thickness 6mm, length 2.5m

Pressure=6*6*65*2.5/6*8=121.875 ton
The above formula is suitable for mild steel, if the material is stainless steel, then the formula should be:
2. Thickness*2*thickness*2*65*length/thickness*2*8, that means double strength of stainless steel, for example:
stainless steel thickness 6mm, length 2.5m
Pressure=6*2*6*2*65*2.5/6*2*8=243.75 ton

Technical parameters


Model



Nominal

pressure

(KN)

Table length

(mm)

Distance between

stand(mm)

Throat

depth

(mm)

Slide stroke

(mm)

Stroke

(Min-1)

Maximum

opening

height

(mm)

Main motor

power

(KW)

Dimensions

(mm)

WC67Y-50/250050025002000250120≥163205.52600*1400*2000
WC67Y-50/3200

500

32002600250120≥163205.53300*1400*2200
WC67Y-63/250063025002000250120≥143355.52605*1725*2200
WC67Y-63/320063032002600250120≥143355.53300*1725*2355
WC67Y-80/250080025002000250120≥143357.52605*1725*2355
WC67Y-80/320080032002600250120≥143357.53300*1725*2405
WC67Y-80/400080040003100280120≥143357.54210*1550*2300
WC67Y-100/2500100025002000320120≥123857.52560*1320*2510
WC67Y-100/3200100032002600320120≥123857.53260*1320*2510
WC67Y-100/4000100040003100320120≥123857.54060*1320*2760
WC67Y-125/3200100032002600320120≥123857.54060*1320*2760
WC67Y-125/4000125040003100320120≥123857.54080*1825*2430

Advantages of CNC WC67Y sheet bending machine price


1. Host uses WC67Y series models, with dedicated economic NC system;

2. Multi-step programming function enables multi-step program to run automatically, continuous positioning,

after blocking materials to achieve precise adjustment slider position automatically;

3. bending machine counting function, real-time display the number of processing after power and memory

gauge slider position, procedures and parameters electro hydraulic sheet metal folding machines

4. After the block imports of ball screw to ensure backgauge positioning accuracy, higher machining accuracy.



Our Services


Standardization of Service
response in 1 hours
provide solution in 1 day
solve complaint in 2 days

Installation Service
Installation Service are available with all ACCURL machines. We dispatch technician to customer's factory for installation and preoperation of machines.(Customer only need to pay the airfare and hotel)

Trainning Service
Our technician is able to go to your factory and offer training of how to use our machine. As well you may send your technician to our company to learn how to operate machines.

Quality Guarantee

We guarantee the quality of machines(e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.

We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.

Quick Details


Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y-50/3200
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: stainless steel ,titanium iron galvanized sheet ,carbon steel platel
Power: hydraulic,cnc
Automation: Automatic
Extra Services: Piercing & Punching
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Column spacing:: 2600mm
Length of table (mm):: 3200mm
Throat depth:: 250mm
Trips:: 16 in min
Name:: sheet bending machine price
Maximum opening height:: 320mm
Main power:: 5.5kw
Slide stroke:: 120mm
Nominal pressure:: 500 kn
hydraulic system & valve:: BOSCH Germany

, , , , , , , , ,
