factory price QC12Y-6X2500 cnc hydraulic swing beam shearing machine

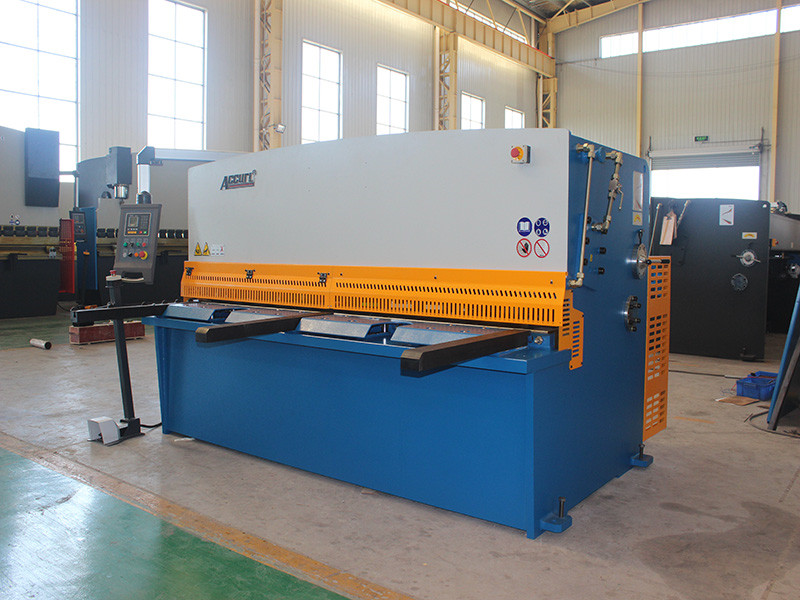

e21s controller shearing machine

Description


ColorAny color is available

Logo

Customized Logo for Best-selling shearing machine
MOQSmall MOQ,1 SET for Best-selling shearing machine
Delivery Time(1) 30-60 days –If you want to customize your request

(2)25 days – For our Standard

OEM Accepted

Yes

Certification availableYes
CNC SystemDelem . ESTON ……
Packing Details20GP ,40GP ,20 OT Or LCL
Production Capacity500/sets Best-selling shearing machine Per Month
Payment Term L/C ,T/T,D/A,WESTERN UNION ,MONEY GRAM

Standard Euipment (100% in-kind shooting)


^ Our QC11series and 12 series metal cutting machine take whole welded structure, pic is QC12K series

^the shearing machine worktable with ball roller and holder for material, easy to handle and operate (plate shearing machine)

^ standard MD11 CNC system,we also have other CNC system for optional,such as import DELEM CNC system(made in Netherlands) and domestic ESTUN CNC system(made in Nanjing),different cnc system have different axis and progress,function,ect.This mainly depend on clients requirements.

performance of ACCURL shearing machine


1.The appearance structure of Hydraulic shearing machine products

1).Using UG analysis method, by computer aided optimization design

2).The machine's body adopt whole sheet plate welded structure, with good strength,inflexibility and resistance to shock

3).Overall framework is using the way of sand derusting , and spraying antirust paint

2.Hydraulic shearing machine features

1).Work surface is equipped with auxiliary cutter holder ,easy to trace conditioning blade

2). Work surface is equipped with feeding roll the ball ,operating conveniently

3). Blade gap adjustment adopts stepless adjustment, to meet the need of different thickness and material of shear

4).Rectangular blade , can use four cutting edge for shearing,this can extent the blade’s life

5).Adjust the shearing stroke, this can improve the working efficiency, and can also realize block shear function

6).Shearing frequency count by itself,this action can reduce some intricate inventory work

3. Hydraulic system

1). Advanced integrated hydraulic system, reduces the pipeline installation, ensure the reliability and safety in the operation of the machine height

2). Pressure institution: the installation on the back plate in front of the frame after several material cylinder inlet pressure, pressure is expected to head down after overcome the tension of the tension spring, pressure plate. Upon the completion of the shear, by means of the torsion spring tension and reset. The size of the force that press a material with the increase of the shear plate thickness are increased

4. Electrical control system

1). The electrical components and materials in accordance with international standards, safe and reliable, long service life

2). This machine adopts the 50 hz, 380 v power supply three phase four wire system. Machine motor three-phase 380 v, the single-phase 220 v line lamp. Control transformer USES the two phase 380 v. Control transformer output 220 v for the use of control circuit, in which 24 v supply solenoid directional control valve. 6.3 V supply lamp use.

3). Machine electrical box is located in the left side of the machine tool. The operation of the machine components in addition to the pedal switch, all concentrated in front of the machine tool button on the site, each operation procedures element function by its image at the top of the symbol of Peugeot

5.Hydraulic shearing machine before and after the block material

1). Before the keep-off: placed on a table surface, with instructions numerical scale, to adjust the activity block is to achieve the required keep-off values. When cutting thin plate keep-off shear convenient before use.

2).Stopper: installed in the tool carrier, with the upper tool post to bobbing up and down, the adjustment by the 0.55 KW motor drive behind, after geared by the screw drive, the press the regulation when pressing "+" and "-" to block plate the adjustment of the forward or backward, digital display size (location) in motor adjustment cannot achieve the required adjustment value, can be manually adjusted twisted round manual fine-tuning to ensure that the required adjustment value, behind so adjusting is convenient and reliable. Behind when shearing to length of sheet metal is greater than the maximum keep-off distance, baffle plate can be open to the last position, to raise keep-off plate, sheet metal shear can be arbitrary.

Quick Details


Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: QC11/12Y series
Voltage: 380V/60HZ /3P(according to your local voltage )
Rated Power: 7.5kw
Dimension(L*W*H): depends on details
Weight: 3-60 t
Certification: CE&ISO
Warranty: 1 year, provided technical service all life time
After-sales Service Provided: Engineers available to service machinery overseas
cutting thickness: 4-40mm
cutting length: 2500-6000mm
back gauge: 20-800mm
strokes: 3-18 times per min.
cutting angle: 0.5-4°
main power: 4-75kw
voltage: 380/220V or according to yours
color: blue, white or others
OEM: YES
ODM: YES

, , , ,
