steel plate hydraulic shearing machine for sale

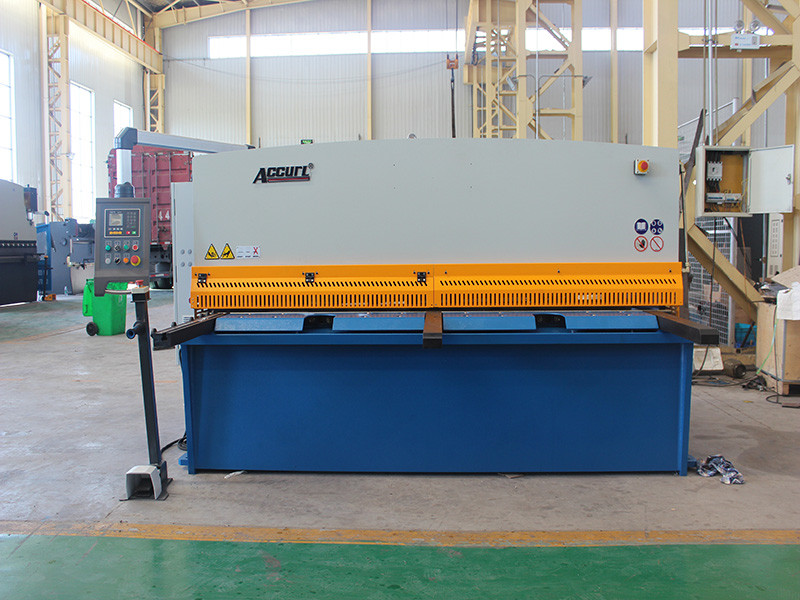

steel plate shearing machine

Main Features

1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.The ACCURL Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
3.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
4. Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth, Germany,
5. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
6. CE conformity including Tiltable Fornt Finger Guard and Optical Rear Safety Guard,
7. High quality shear blades, Service Kit, Colours are light/dark grey and yellow.

Standard Equipment:

1.Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. Bed Infill Plates with Ball Transfers
8. Delta inverter with ball screw and polished rod with 0,01 mm accuracy.

Better Cuttings:

1. Backgauge adjustment according to blade gap.
2. Backgauge retraction feature.
3. Sub-program and programming loop.
4. Sequence repeat function.
5. Auto cutting (Flying cut).

Optional Equipment:

1.Roller Rear Supporting Rack
2.Pneumatic Sheet Supporting System
3.Table Mounted Sheet Angle Cutting Gauge
4.CNC Control with input of Plate Thickness,
5.Backgauge Position and Cutting Length
6.GoTo Backgauge Control

Specifications for MS7-16X4000MM Shearing Machine

Model		MS7-4×2500	MS7-4×3200	MS7-4×4000	MS7-6×2500	MS7-6×3200	MS7-6×4000	MS7-6×6000
Cut Thickness	mm	4	4	4	6	6	6	6
Cut length	mm	2500	3200	4000	2500	3200	4000	6000
Shear Angle	Degree	1°30'	1°30'	1°30'	1°30'	1°30'	1°30'	1°30'
SPM	min^-1	≥ 22	≥ 18	≥ 12	≥ 16	≥ 12	≥ 10	≥ 7
Back Gauge	mm	600	600	600	600	600	600	600
Throat Depth	mm	100	100	100	120	120	120	120
Main Motor	kW	5.5	7.5	7.5	7.5	7.5	7.5	11
Net Weight	kg	4650	4950	6900	5140	6250	8520	17000
Outline Size (L×W×H)	mm	3300×1600 ×1700	3950×1600 ×1700	4600×1705 ×1600	3150×1500 ×1600	4000×1700 ×1800	4650×1700 ×1800	6780×2450 ×2100

Model		MS7-8×2500	MS7-8×3200	MS7-8×4000	MS7-10×3200	MS7-10×4000	MS7-12×2500	MS7-12×3200
Cut Thickness	mm	8	8	8	10	10	12	12
Cut Thickness	mm	2500	4000	3200	3200	6000	2500	3200
Shear Angle	Degree	1°30'	1°30'	1°30'	1°50'	1°50'	2°	2°
SPM	min^-1	≥ 14	≥ 12	≥ 10	≥ 12	≥ 6	≥ 10	≥ 9
Back Gauge	mm	600	600	600	600	600	800	800
Throat Depth	mm	120	120	120	120	120	170	170
Main Motor	kW	7.5	7.5	11	11	18.5	18.5	18.5
Net Weight	kg	5900	6500	7360	8100	21800	9600	11700
Outline Size (L×W×H)	mm	3180×1680 ×1700	4000×1800 ×1850	4680×1800 ×1850	4000×1950 ×1900	6880×2260 ×2100	3300×2030 ×1840	4200×2050 ×2100

Model		MS7-12×4000	MS7-12×6000	MS7-16×2500	MS7-16×3200	MS7-16×4000	MS7-16×6000
Plate		12	8	16	16	16	16
Cut Thickness	mm	4000	6000	2500	3200	4000	6000
Cut Thickness	mm	1°80	2°	2°9'	2°	2°	2°
SPM	min^-1	≥ 8	≥ 4	≥ 9	≥ 8	≥ 7	≥ 4
Back Gauge	mm	800	800	800	800	20-1000	20-1000
Throat Depth	mm	170	320	315	320	320	320
Main Motor	kW	18.5	30	18.5	18.5	18.5	22
Net Weight	kg	13800	38000	11100	12900	19700	44000
Outline Size (L×W×H)	mm	4800×2270 ×2000	6900×2800 ×2500	3310×2240 ×2000	4200×2150 ×2200	4820×2490 ×2460	7100×2900 ×2650

Model		MS7-20×3200	MS7-20×6000	MS7-25×2500	MS7-25×3200	MS7-32×2500	MS7-32×3200
Cut Thickness	mm	20	20	25	25	32	32
Cut Thickness	mm	3200	6000	2500	3200	2500	3200
Shear Angle	Degree	2°30'	2°30'	3°	3°	3°30'	3°30'
SPM	min^-1	≥ 5	≥ 4	≥ 5	≥ 5	≥ 4	≥ 4
Back Gauge Adjustment	mm	1000	1000	1000	1000	1000	1000
Throat Depth	mm	320	150	325	325	350	350
Main Motor	kW	30	55	37	37	45	45
Net Weight	kg	22000	51000	20000	27000	32500	42100
Outline Size (L×W×H)	mm	4190×2400 ×2300	7100×3500 ×3050	3450×2650 ×2800	4130×3100 ×2800	3550×3100 ×2800	4335×3300 ×3280

Basic Info

Model NO.: MS7-16x4000
Cutting Length: 4000mm
Electrical Components: Schneider Electrical From French
Main Motor: Siemens From Germany Brand
Backgauge Drive: Schneider Electrical From French
Foot Switch: Kacon From South Korea
Hydraulic System: Bosch-Rexroth Form Germany
Ball Screw/ Polished Rod: Hiwin From Taiwan Brand
Product Name: Shearing Machine
Trademark: Accurl
Transport Package: Wooden Cases for Shearing Machine
Specification: 4820x2490x2460mm
Origin: China
HS Code: 84623990
