trumpf style cnc turret punch press automatic hole punching machine price

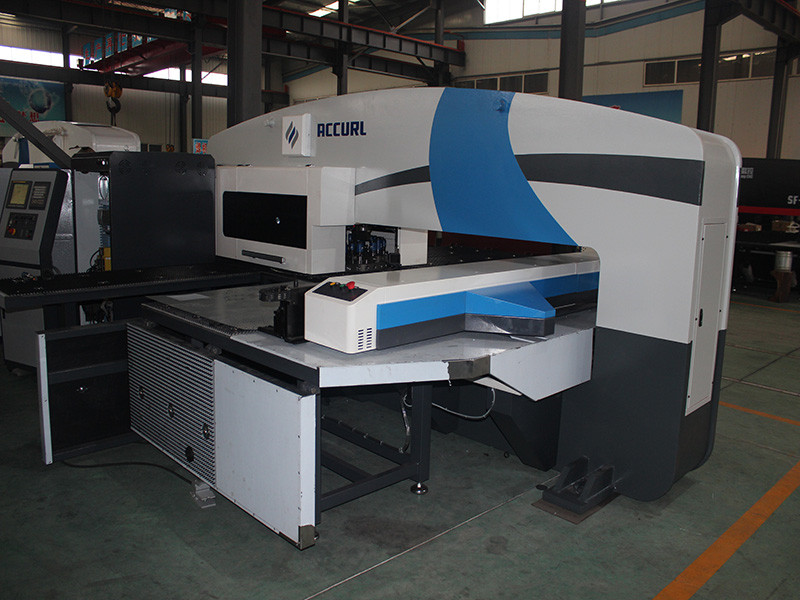

trumpf cnc turret punch press

Product Application


ACCURL servo turret punching machine utilizes the power of servo motor, various functions such as shifting and execution, and the characteristics of good controllability of the rotating speed. It directly drives the punching mechanism, adopts adaptive torque control technology and computer control technology, and utilizes digital technology. And feedback control technology, control the operation of the servo motor, can accurately control the position of the punching head relative to the motor corner, and use the stamping mechanism to achieve a variety of stamping processes. Through the preparation of different procedures, the various stamping motion curves required for the process are realized, different workpiece deformation speeds are obtained, the workpiece quality is ensured, and the service life of the mold is improved. It is an environmentally-friendly and energy-saving press that realizes the mechanical press.

• Siemens AC servo motors on all axis
• High precious positioning possibility with linear sledge system on all axis.
• Platform type on bridge side or Portable CNC control panel
• CNC control outputs/inputs for vacum table & filtering unit
• High vacuming capability with lower energy consaption
• Independent cutting table system
• Multi head Plazma and multi head oxy fuel cutting possibilities.
• +/- 0,02 mm positioning accuracy.
• +/- 30m/min positioning speed.



Description
Parameter
Unit
Remarks
Punching pressure
300(30)
KN(T)
Rack structure
O closed- type servo drive
mm
Electric furnace tempering
Maximum processing sheet size
X-axis 2500
Y-axis 1250
mm
Secondary positioning can process 5000mm
Maximum processing sheet thickness
6
mm
Maximum diameter of one punch
Φ88.9
mm
Non-standard
Highest punching frequency
800
times/min
The number of control axis
5(X,Y,Z,T,C)
PCs
Form of mold
Long guide 85 series international standard mold
Turret station distribution
A,B,C,D
Standard
Non-standard
Processing life of mold
500,000
times
Repositioning cylinder
2
set
Maximum feeding speed
X-axis 80
Y-axis 80
m/min
Workbench structure
Seamless brush / Universal steel ball table
Stainless steel edging
Maximum turret speed
40
rpm
Re- positioning accuracy
±0.02
mm
Maximum load weight
150
Kg
Maximum output power
16
KW
Air pressure
0.55
MPa
Voltage
380±5%
V
Overall dimension
Length × width × height 5000×5000×2100
mm

Detailed


Punch Frame

Name: Stress Relieved Bridge Frame Construction
Finite element analysis is on high performance computers is used in the design process. The concept consists of two fully enclosed box fabrications that are welded put under high load and stress relieved. The result is reduced vibration and deflection under full loads providing greater part precision, reduced tool wear, and noise reduction.

Programmable Work Chute

A large (15.7 x 23.6) programmable work chute allows automatic discharge of parts into a parts container. This feature is available optionally on all other models.

Programmable Sheet Clamps

The position of the sheet clamps are automatically set by standard program information. Contact sensors automatically stop the machine if these sensors detect any movement of the sheet while it is clamped.

Rotational Head

The full 360° programmable head achieves 40 revolution per minute. A harmonic zero backlash gear driven system provides accurate positioning and control.

Indexable Multi-Tools

3,6,8 and station indexable multi-tools reduce tool changes and increase flexibility. Programmable to .02° with no upper and lower mechanical connections provides perfect alignment of the upper and lower tool. Even defects or worn tools can be offset.

Flexible Turret Concepts

-Thick turret tooling concept is used with all stations bushed. It can be equipped with up to six indexable multi-tool stations (center). Station-to-station indexing is done in three seconds or less.
-All dies are positioned below the table surface preventing marking of the sheet. Micro tags can be reduced to minimum for more precise parts.

Quick Details


Condition: New
CNC or Not: CNC
Power Source: Hydraulic
Place of Origin: Anhui, China (Mainland)
Brand Name: Accurl
Voltage: 380V/220V Optional
Power(W): 7.5KW
Weight: 8T
Dimension(L*W*H): Machine Size
Certification: CE ISO
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Product name: CNC Turret Punch
Keyword: CNC Turret Punch
Function: Steel Metal Punching
Application: Metal Sheet Stamping
Color: Customizable
Type: High Speed CNC Turret Punch
Material: Steel Material
Model Number: SF-30
Model: Customized according to customer
Custom service: Provide a variety of customiza
