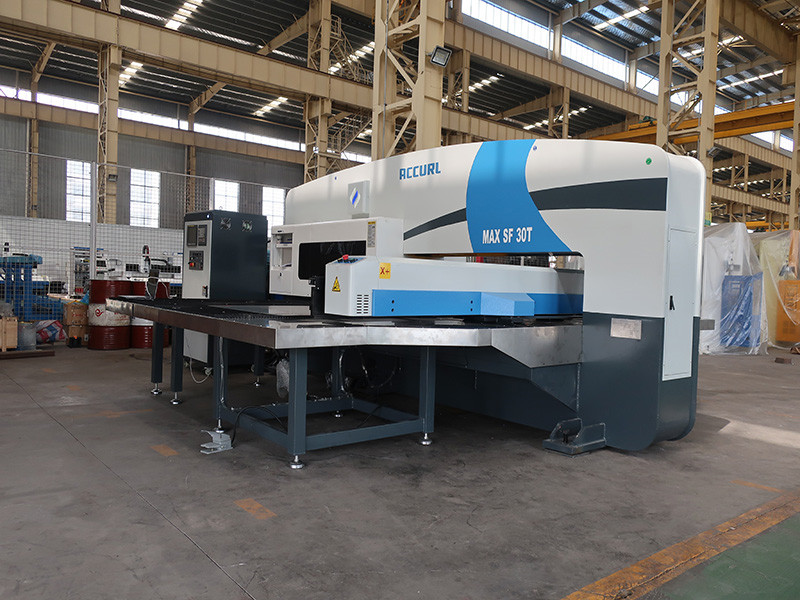

cnc turret punch press machine

The Machine Feature

A,Equipped with advanced combat head structure, lubrication sealing structure is reasonable, the static and dynamic response characteristics is good, impaction of temperature change is small, without environmental interference.

1,Stroke, speed adjustable

(1), can be automatically select punching stroke for different thickness, improve processing efficiency.

(2), in each point of every single mode on the trip, stamping speed adjustable, can realize fast move of zero stroke and low speed move of punch, improve the process quality, realize no noise.

(3), can be precisely controlled lower dead point, very convenient for special craft processing, such windows, knockouts, roll bars, roll scissors and so on.

2,Overload protection

3,Stable quality

B,Fiveaxis machining center with high rigidity and paired processing turntable, ensuring station hole, positioning hole location accuracy requirements. Ensure concentricity upper and lower dies, greatly extend the life of the mold; simplified turntable structure, extending the life of the turntable; can be equipped with long-oriented mold, improve guiding precision molds to extend die life.

C,International pneumatic components and electrical components to ensure the reliability of the overall performance.

D,Using high-quality production of large lead ball screws, linear guides ensure that the transmission accuracy.

E,With a hard brush and ball mixing table, the machine not only reduces the noise and vibration at work, but also played a very good surface protection for processing sheet.

F,Using the O-closed steel welded body, by the second aging treatment, making removal more thoroughly stress.

G,Use floating clamp, clamping force big, stable feeding; integral dovetail carriage, rigid, clamp easy to move.

H,System with automatic clamp protection, to avoid damage to the mold and clamp, ensuring the operation of the program continuity.

I,Overall beam structure, enhanced rigidity, accurate positioning, in the case of high-speed feeding more stable, eliminate the workbench X, Y axis dynamic offset situation.

J,Equipped with a centralized lubrication system, oil can be fed directly into the lubrication points, reducing the friction of movement to pay, improve life.

CNC system

7.5-inch LCD color monitor

Rear port: Connect the machine control panel USB interface, RS232C, distributed and integrated I / O

1, Axis, independent digital control of three-dimensional coordinate movement.

2, the servo motor controlled precision ball screw drive and locking.

3, the three-dimensional coordinates can be manually fast, slow moving and incremental movement.

4, the absolute coordinates and relative coordinates programming.

5, screw backlash software compensation.

6, decimal data input.

7, using ISO standard NC code programming.

8, recall, modify, delete, insert other editing functions.

9, the dry run self-diagnostics, the program displays an error.

10, overcurrent, overvoltage, overheating, wrong phase protection.

11, breakpoints continue processing functions.

12, clamp pneumatic control

13, operating software: compatible with windows

14 Lubrication system: automatic lubrication system

15, the speed setting: stepless

Turret Punching Machine Techinal Parameter



UniteB32(Closed Type)
Nominal Force KN 300
Max. Process

Plate Size

Max. Process Plate Thickness mm≤6
Max. Punch Hole Size mm88.9
Max. Plate Weight kg 150
Number of Station set 32
Precision set±0.10
Max. Punch Frequency hpm stroke 8mm-500

Stroke 30mm-100

Max. Plate Move Speed m/min 120
Rotating Speed rpm 30
X Axis Stroke mm 1250
Y Axis Stroke mm 1250
Number of Control Axis set4 axis
CNC systemGermany Siemens
Air Pressure mpa0.55
Dimension mm5200*3800*2200
Motor Power kw4.5
Machine TypeClosed Type

Basic Info

Model NO.: B32
Punch Shape: Closed Punch
Slider Drive Mechanism: Crank Press
Automatic Grade: Automatic
Precision: High Precision
Condition: New
Model Number: B32
After-Sales Service Provided: Engineers Available to Service Machinery Overseas
Voltage: as Requirement
Specification: CE, ISQ
HS Code: 846241110
Type: High-Speed Punching Machine
Slider Movement: Single Action
Controlling Mode: CNC
Power Source: Pneumatic
Certification: CE, ISO 9001
Brand Name: Besco
Warranty: All Life,2 Year Free
Color: Customization
Trademark: Accurl
Origin: China, Anhui
