Product Description

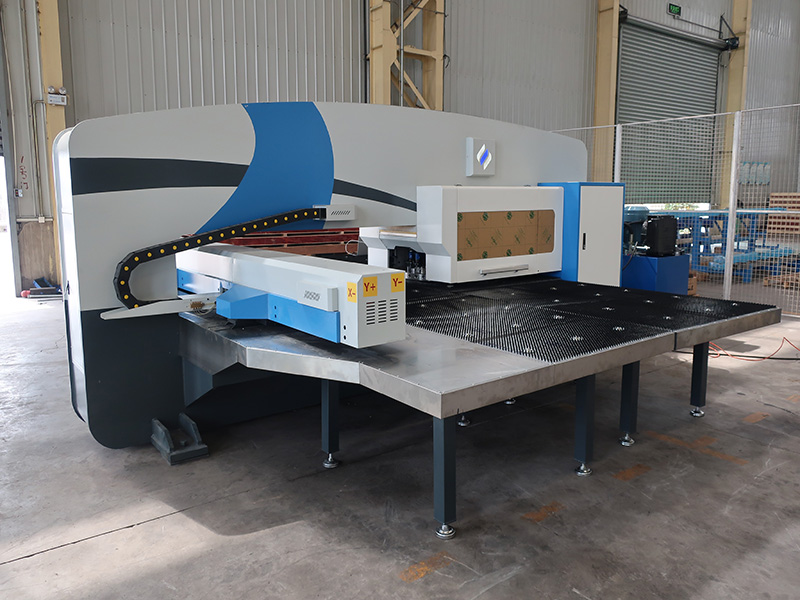

New ACCURL® high-tech TP and TC turret punch presses are produced as a closed type rigit Steel construction into a rigit structure, the finite analysis system was used in the design and simulation process to allow minumum deflection during operation. No deflection between the turret and tools occurs during the punching process and it increase tool life. TPP series turret punch presses has 2 models with 27 station/700 stroke and with 33 station/900 stroke which helps to finish all the work at onces even on very complicated sheet products. So ACCURL turret punch presses provides a complete solution with optimum cost.

• Siemens AC servo motors on all axis
• High precious positioning possibility with linear sledge system on all axis.
• Platform type on bridge side or Portable CNC control panel
• CNC control outputs/inputs for vacum table & filtering unit
• High vacuming capability with lower energy consaption
• High vacuming capability with lower energy consaption
• Independent cutting table system
• Multi head Plazma and multi head oxy fuel cutting possibilities.
• +/- 0,02 mm positioning accuracy.
• +/- 30m/min positioning speed.

Standard Execution:

- ‘O’ Frame design tested by Finite Element Analysis software, precisely machined and stress relieved to ensure high precision
- Hydraulic punching with indexable tool station through 360° in increments of 0.001°
- Punching, cutting and forming processes subject to optional tooling fitted -controlled by the CNC according to material
- Capable of producing not only 2D components but when fitted with special tools can create 3D forms which wouldn’t be possible when using a profiling process
- High nibbling rate of 600 hits per minute in 1mm pitch
- High capacity motors and precision guides on all axes able to reach high operational speeds
- Rigid beam with fitted with two sheet clamps capable of positioning sheets of up to 8mm thickness
- Very accurate repeatability of 0.04mm
- Clamping force adjusted by CNC from 100kg to 1000kg
- Repositioning feature
- High processing speeds and data transfer rates

Punch Frame

Name: Stress Relieved Bridge Frame Construction

Finite element analysis is on high performance computers is used in the design process. The concept consists of two fully enclosed box fabrications that are welded put under high load and stress relieved. The result is reduced vibration and deflection under full loads providing greater part precision, reduced tool wear, and noise reduction.

Programmable Work Chute

A large (15.7 x 23.6) programmable work chute allows automatic discharge of parts into a parts container. This feature is available optionally on all other models.

Programmable Sheet Clamps

The position of the sheet clamps are automatically set by standard program information. Contact sensors automatically stop the machine if these sensors detect any movement of the sheet while it is clamped.

Rotational Head:

The full 360° programmable head achieves 40 revolution per minute. A harmonic zero backlash gear driven system provides accurate positioning and control.

Indexable Multi-Tools

3,6,8 and station indexable multi-tools reduce tool changes and increase flexibility. Programmable to .02° with no upper and lower mechanical connections provides perfect alignment of the upper and lower tool. Even defects or worn tools can be offset.

Flexible Turret Concepts

-Thick turret tooling concept is used with all stations bushed. It can be equipped with up to six indexable multi-tool stations (center). Station-to-station indexing is done in three seconds or less.
-All dies are positioned below the table surface preventing marking of the sheet. Micro tags can be reduced to minimum for more precise parts.

CNC control System

Siemens 840 Dsi Series CNC Control
Accurl has chosen the very powerful Siemens 840 DsI CNC Control, which has been specially designed for punching. Some of the features are:
•Movable Control Cabinet
•Ethernet and Network Communication Connections
•UPS Electrical Component Surge Protection System
•Internal Diagnostics w/Graphic Visualization
•Online Help Messages
•Telediagnostics via Modem (optional)
•Auto Optimization of sheet speed according to Sheet Mass
•Graphic Programming @ Machine Control
•Sheet Layout & Automatic Calculation of Sheet Layout
•Removable Software Key (office or machine programming

Quick Details

Condition: New
CNC or Not: CNC
Power Source: Mechanical
Place of Origin: China (Mainland)
Brand Name: AccurL
Model Number: TC-MAX1250
Voltage: 380V/220V Optional
Power(W): 10.5Kw
Weight: 7850Kg
Dimension(L*W*H): 5190*3250*2550mm
Certification: CE ISO
Warranty: 2 years warranty time
After-sales Service Provided: Engineers available to service machinery overseas
Punch Force: 25 tons
Max. Processing Size: 5000*1250mm (With second position)
Max. sheet Thickness: 4mm
Max. Traversing Speed: 80m/min
Servo System: Siemens servo drive
CNC System: Siemens Sinumerik 840D Windows XP
linear guide and ball screw System: Germany Rexroth
Main motor: Siemens Electrical
Electrical components: Siemens Electrical
Programming software: CNCKAD from Israel
