china made hydraulic cnc press brake stainless steel sheet metal bending machine

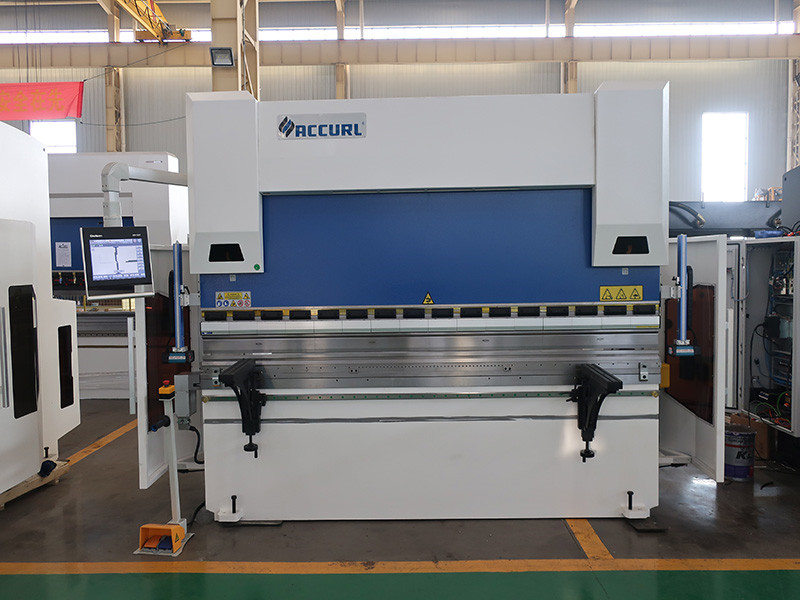

8+1 axis cnc press brake

Main Features


1.Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.All machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel with the latest technology.
3. CNC synchronized Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum levelwith its user friendly CNC controller and low cost hydraulic maintenance.
4. High quality and repetitive bending is obtained by using synchronized cylinders and valves.

5. Automatic axis referencing and calibrating when machine is turned on.
6. Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm

7. Well-known top and bottom tool brands are long lasting stiffened and provide precise bending.Silent high pressure pump.

Standard Equipment:


1. 4- axis Delem DA66T programming mode CNC control
2. Full synchronisation of Y1 + Y2 axes with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy
3. High precision linear scales for measurement of stroke depth mounted on side frames rather than top beam to prevent any distortion in accuracy as beam comes under load
4. CNC-controlled X & R-axis as standard ballscrew backgauge with servo drive motors.

5. Light guards

6. Two micrometric backgauge finger-stops with lateral adjustment

7. Steel mono-block construction
8. Polished chrome plated and ground cylinders
9. Long stroke and large open height dimensions
10. High approach and return speeds for production bending.
11. Euro style quick release top tool holders with intermediaries including wedges for crowning.

12. 88 degree sectionalised goose neck top tool

13. 4 way sectionalised multi vee bottom tool

14. Double footswitch control and pendant type control arm.

15. AKAS laser tooling guards

16. Electrically interlocked side guards

17. Electrically interlocked read access door

18. 2 sliding front support arms with linear guide rails for lateral adjustment and hand wheel for height adjustment, 1000mm long from centre of bottom tool vee.

19. Side guard is standard meeting CE regulations.

Delem DA66T CNC Press Brake Control system:


1. 2D graphical touch screen programming mode
2. 3D visualisation in simulation and production
3. 17" high resolution colour TFT
4. Full Windows application suite
5. Delem Modusys compatibility (module scalability and adaptivity)
6. USB, peripheral interfacing
7. User specific application support within the controllers multitasking environment

8. Sensor bending & correction interface

The best bending results You can bend longer and deeper parts with standard SC/MB8-Bend Series.

Quick Details


Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WE67K- 100T/3200MM
Machine Type: Press Brake
Raw Material: Steel Bar
Material / Metal Processed: Aluminum
Power: Cnc
Automation: Automatic
Extra Services:Piercing & Punching
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Function: Bending Sheet Metal
Worktable length(mm): 3200
dimension: 3300*1600*2300
Max open: 320 mm
stroke: 120 mm
HS code: 8462219000
Nominal force: 1000 KN
Motor power: 7.5KW
Servo driver: Estun
Hydraulic system: BOSCH

, , , , , , , , , ,
