“AccurL”40T cnc sheet metal press brake,40 ton electric cnc press brake,cnc hydraulic press brake 40 tons

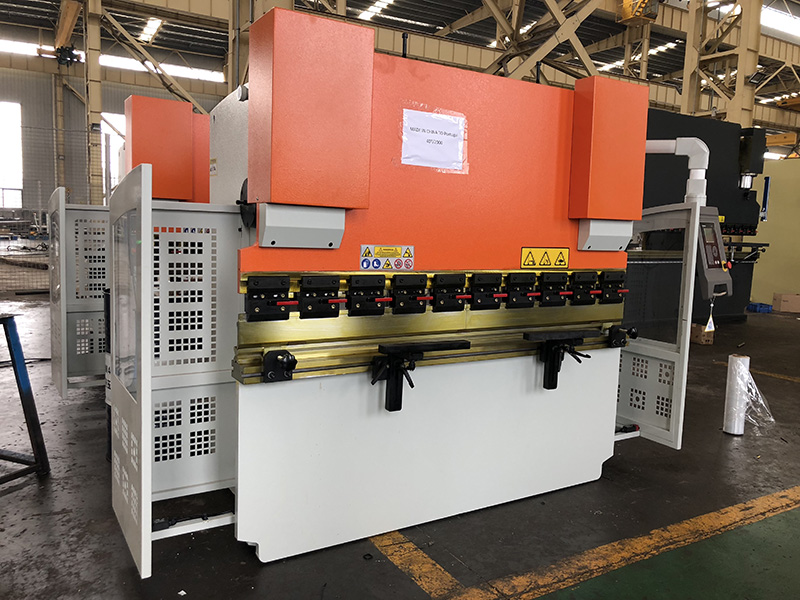

sheet metal 40t press brake

Product Description


"AccurL"40T cnc sheet metal press brake,40 ton electric cnc press brake,cnc hydraulic press brake 40 tons

1. High precision, Wide application
2. EU CE Certification
3. CQC, ISO9001: 2008
4. High performance,
5. Easy to operation.

The whole structure of the hydraulic press brake:
- Welded structure: The stress of the welded parts can be eliminated by vibration; So this forging press gives high accuracy.
- Frame: Consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
- High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

1. Hydraulic system:
- Adopt integrated hydraulic control system, more reliable
- Consist of motor, oil pump and valve groups
- Be installed at the top of the oil box, which can assure that the cylinder is always full of oil when the slide is moving down at high speed
- Complete working cycle can be realized through the control of hydraulic valve.
- The working pressure at the right side of the wall board can be adjusted by the remote adjustment valve

2. Protective fence and the safety interlock:
- Protective fence and the safety interlocker to ensure the operation safety. Power supply switch that is set in the electric box will be automatically turned off when the box's door is opened or the fence is turned up. Protecting barrier with safety interlocker is mounted on the back of the machine. Another, there are travel limit protection and foot pedestal mounted emergency off switch.

3. Synchro control system:
- Slide syncho system: Adopt steel torsion bar synchro system, simple in structure and high in accuracy
- 2 ends of slide has 2 synchro fork which make, The system uses upper die compensation to improve the brake precision.
- Adopt upper die compensation to improve the brake precision

4. Sectional RAM Clamp Bars:

-Separate sectional clamping bars are supplied as standard equipment in order to securely fasten short dies, as well as standard length tooling. Unique crown correcting device is standard.

5. Advance technology and procedures:
- This metal machining tool is a kind of steel torsion bar synchro press brake. -Electronic control of back gauges and RAM stroke, data displayed and manual setting
- Process of cylinder and sealing component:
Cylinder: No. 45# steel treated, inner holes fine machined and extruded.
Valve rods: No. 45# steel treated, nickel and phosphorous coated outside.

Model
(WC67Y)
Nominal Pressure (kN)Length of table (mm)Distance Between Housing (mm)Throat Depth (mm)Stroke (mm)Open Hight (mm)Main Motor (kW)Dimensions
(L x W x H) (mm)
weight (T)
40/20004002000160020011033542545x1510x20503
40/25004002500200020011033542950x1510x20803.5
63/2000630200016002501103505.52555x1600x21303.8
63/2500630250020002501103505.52960x1600x21804.2
63/3200630320026002501103505.53740x1600x22305.2
100/25001000250020003501504007.52980x1650x23306.3
100/32001000320026003501504007.53740x1650x23557
100/40001000400032003501504007.54550x1650x24508.8
100/50001000500040003501504007.55100x1500x265011.8
125/25001250250020003501504107.53980x1650x23707.5
125/32001250320026003501504107.53750x1650x24508.2
125/40001250400032003501504107.54550x1650x24709
125/50001250500040003501504107.55100x1500x279511.5
125/60001250600045003501504107.56100x1500x289514
160/2500160025002000350150425112980x1715x24108.5
160/3200160032002550350150425113750x1715x245011
160/4000160040003200350190450114550x1715x273012
160/5000160050004000350190450115100x1570x290015.5
160/6000160060004500350190450116100x1570x301019
200/3200200032002600350240460113750x1815x271513
200/4000200040003200350240460114550x1815x285014
200/5000200050003800350240460115100x1715x302018.5
200/6000200060004500350240460116100x1715x312021
250/3200250032002600400240525113750x2010x285015.5
250/4000250040003200400240525114550x2010x301017
250/5000250050003800400240525115100x1890x319021.5
250/6000250060004500400240525116100x1890x335028
300/3200300032002600400250545153740x2100x323519.5
300/4000300040003200400250545154340x2100x330022
300/5000300050003800400250545155100x2100x343026
300/6000300060004500400250545156100x2100x349029

Basic Info


Model NO.: WC67Y-50T/2500
Estun Nc System: Estun E21 Nc System
Servo Motor/ Servo Drive: Yaskawa From Japan Brand
CNC Control Axis: Y X Axis Crowning(Electro-Hydraulic Servo)
Electrical Components: Schneider Electrical From French
Motor Power: Siemens From Germany
Backgauge & RAM Drive: Inverter From Schneider Electrical
Ball Screw/ Polished Rod: Hiwin From Taiwan Brand
Hydraulic System: Bosch-Rexroth Form Germany
Keywords: Nc Press Brake Machine
Trademark: AccurL
Transport Package: Wooden Case
Specification: 3750x1350x2240
Origin: China Ma′anshan
HS Code: 84622990

,
