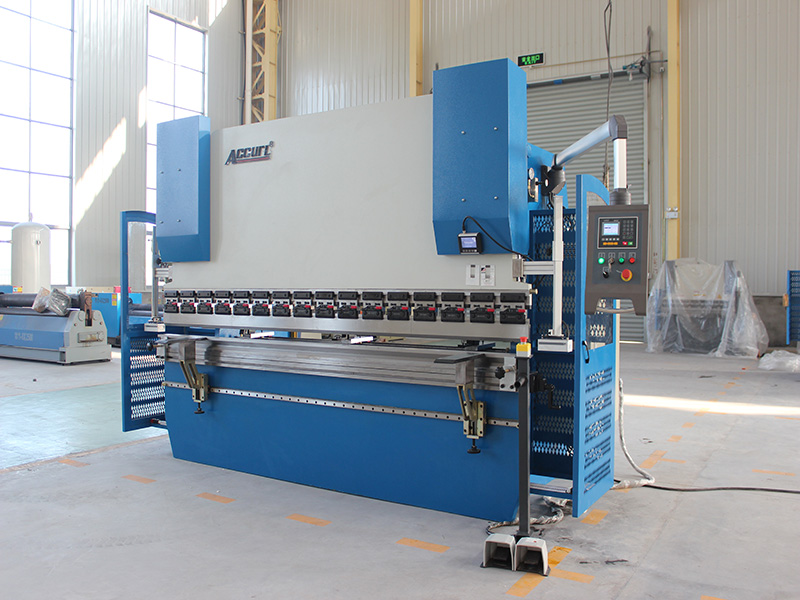

Wc67K 100t siemens motor servo bending machine sheet metal CNC hydraulic press brake with Da41 controller

wc67k press brake

servo CNC Press Brake

Accurl is one of the Top 3 press brake and shearing machine in China, which specializing in manufacturing and marketing of press brake,shearing machine,press machine, square duct production line LINE5,4,3,2,1;spiral duct machine, locking forming machine;folding machine,plasma cutting machine, power press,ironworker,hydraulic notching machine, beading machine,flange forming machine,shearing machine & press brake,Blade/Mold, etc.

1. Main Features:

Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending
Hydraulic synchronous control and Delem CNC programmable controller guarantee precise repeatability and easy use.
Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status.
X ,Y-axis realize accurate positioning function through CNC DA41S controller programming and servo motor.
Latest servo response hydraulic control technology, the machine tool is more stable and reliable.
Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation
WC67K series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

2. Main Configuration

Holland DELEM DA41S controller
Controller controls and adjusts Y-axis and X-axis
Servo drive and control positioning of X-axis and Y-axis
Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Upper and lower dies(86°, R0.6mm, material: 42CrMo)

3. Safety Standard:

1.EN 12622:2009 + A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006+A1:2009

Front Finger protection ( safety light curtain )
South Korea KACON pedal switch ( safety grade 4 )
Back metal safeguard, CE standard
Safety relay monitor pedal switch, safety protection
Safety standard ( 2006/42/EC)

4. Delem DA41S CNC controller

High-definition LCD display
Control slider stop position
Backgauge control
Angle programming
Setting die parameters
Material-escaping control function
100 programs, 25 process steps per program
Servo motor control, servo drive control
Die library
mm / inch
Chinese / English

Major Import configuration list

2SEVRO MOTOR1setJapan yaskawa
4Ball screw2setsTaiwan HIWIN
5Linear guide2setTaiwan HIWIN
6joint1setGerman EMB
7Sealing ring1setFIETZ, Japan, VALQUA, Japan.
8Major electrical components1setImport or joint venture

Random tools/documents

Serial No.NameQuantityRemark
1Main unit1Including one set of upper and lower die, front plate holder and foot switch
2Grease gun1
3Button key2
4Key to door lock2
5Product instructions1
6certificate of quality1
7Packing list1
8Foundation bolt4 setsIncluding nuts and washers
9O-type sealing ring16
, , , , , ,
