metal sheet bending 100t/3200 metal master press brake

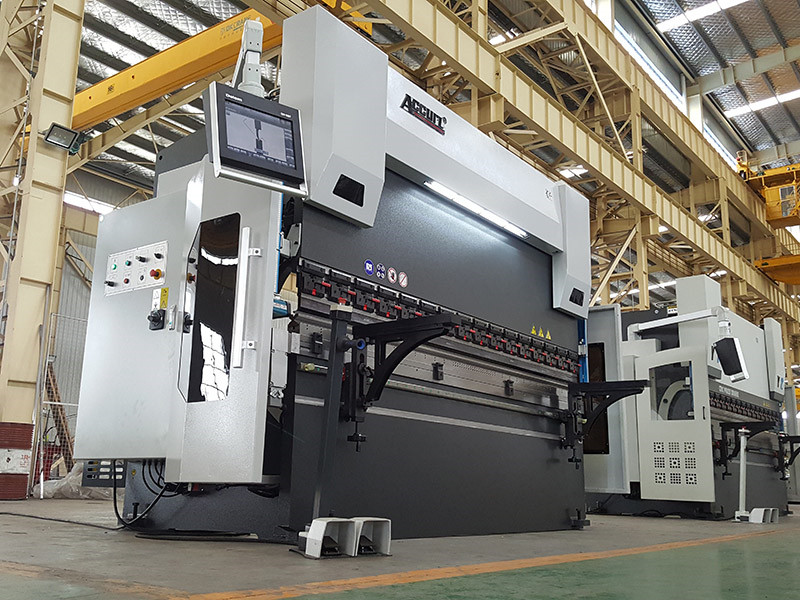

metal master press brake

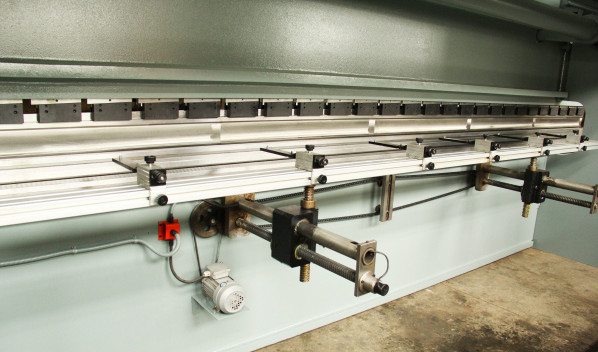

1.Machine Characteristics

The machine is equipped with hydraulic electric control, freely adjustable slider travels and inching, semi-automatic, automatic operating criterion convenient for module trial and adjustment.
Up-move type bending design, pair oil cylinders working simultaneously, balanced operation, convenient, and safety.
With function of keeping pressure and delay time on lower dead spot, to assure the accuracy of work pieces.

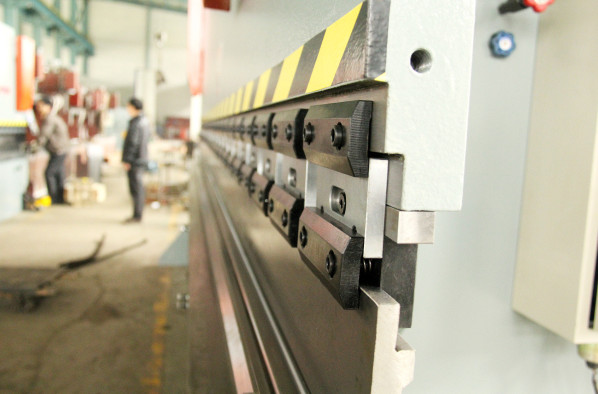

2. Product Superiority

ACCURL hydraulic press brakes are a high quality, heavy duty torsion balanced machine.
ACCURL hydraulic press brakes are manufactured to the highest standards.
Machines come standard with a 2 axis digital readout system.
Welded steel structure, vibratory stress relief, high mechanical strength and good rigidity
Hydraulic transmission provides steady and reliable operation.

3. Product Features

All steel welded construction
A synchronized torsion bar system ensures consistent ram movement.
Front sheet support arms
Standard top & bottom tools
Taper wedge tool clamps
Hand moveable foot pedal control (with emergency stop)
Side safety guards
Rear safety guards (interlock switches)
Overload protection device
Adjustable cams to set the upper position & work speed change point (adjustable travel limit control)
CNC Control Panel (2 axis)

4. Options

Optional Delem CNC control (3 axis + )
Electro-hydraulic Synchronization: ---- 3+ axis
Ram Stroke: Y1, Y2
Back Gauge: X; X-R; X-R-Z1-Z2; X1-X2-Z1-Z2-R; X1-X2-R1-R2-Z1-Z2
Quick release tool clamps
Light guard system or laser safe guarding
Hydraulic crowning system

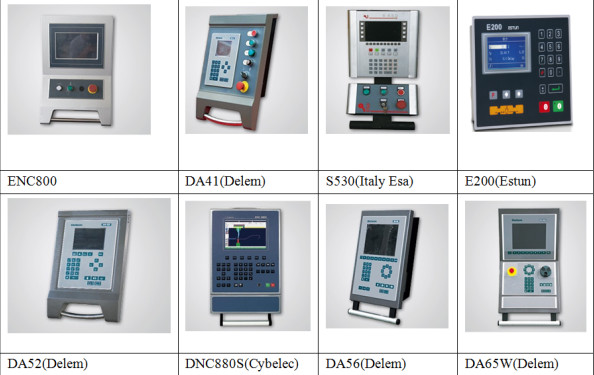

5. CNC Controller

6. WD67Y Hydraulic Press Brake Technical Data
Model	Normal force	Worktable length	Distance Between Housing	Throat Depth	Ram Stroke	Max.Open Height	Motor	Dimension
Model	Normal force	Worktable length	Distance Between Housing	Throat Depth	Ram Stroke	Max.Open Height	Power	(L x W X H)
	KN	MM	MM	MM	MM	MM	Kw	MM
30T/1600	300	1600	1300	220	80	220	3	16009401700
35T/2050	350	2050	1600	220	100	250	4	205010501850
40T/2200	400	2200	1850	200	100	340	5.5	226012502060
40T/2500	400	2500	2000	200	100	340	5.5	256012502060
63T/2500	630	2500	2000	250	125	370	5.5	256012802260
63T/3200	630	3200	2560	250	125	370	5.5	326012802420
80T/2500	800	2500	2000	320	140	390	7.5	256015002400
80T/3200	800	3200	2560	320	140	390	7.5	326015002400
80T/4000	800	4000	2960	320	140	390	7.5	406015002400
100T/2500	1000	2500	2000	320	140	390	7.5	25601502450
100T/3200	1000	3200	2560	320	140	390	7.5	326015002450
100T/4000	1000	4000	2960	320	140	390	7.5	406015002450
125T/3200	1250	3200	2560	320	125	380	7.5	320015002450
125T/4000	1250	4000	2960	320	125	380	7.5	400015002450
160T/3200	1600	3200	2550	320	200	450	11	326015002480
160T/4000	1600	4000	2950	320	200	450	11	408015002480
160T/5000	1600	5000	3950	320	200	450	11	506015002480
200T/3200	2000	3200	2540	320	200	450	15	320015002480
200T/4000	2000	4000	2940	320	200	450	15	400015002480
200T/5000	2000	5000	3940	320	200	450	15	500015002480
250T/4000	2500	4000	2920	400	250	530	18.5	424016003000
250T/5000	2500	5000	3920	400	250	530	18.5	524016003000
300T/4000	3000	4000	2920	400	250	530	18.5	406016003000
300T/5000	3000	5000	3920	400	250	530	18.5	500016003000
300T/6000	3000	6000	4920	400	250	530	18.5	600016003000
400T/4000	4000	4000	2920	400	300	560	22	400021803800
400T/5000	4000	5000	3920	400	300	560	22	500021803800
400T/6000	4000	6000	4700	400	320	630	30	606022203980
500T/6000	5000	6000	4600	500	320	700	30	608027604000
800T/6000	8000	6000	4600	500	400	900	37	610032504300

Basic Info.

Model NO.:100t/3200
Condition:New
Automation:Automatic
Suitable for:Stainless Steel
Type:Hydraulic Bending Machine
Hydraulic Press Brake:CNC Press Brake
Trademark:ACCURL
Transport Package:Plastic Film Cover
Specification:CE
Origin:ANHUI, China
HS Code:846229900

sheet metal press brake
