cnc hydraulic servo hydraulic stainless steel iron steel plate nc press brake bending folding machine

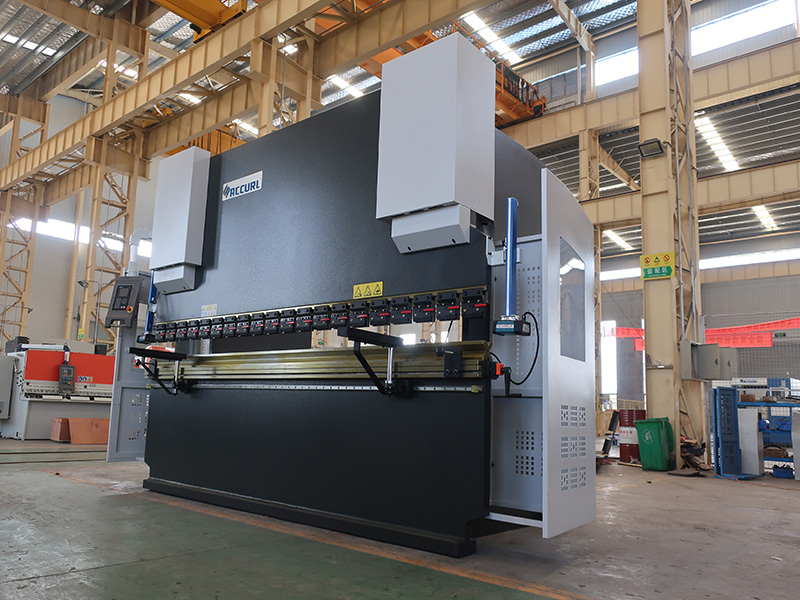

steel plate press brake

Outsourcing part


NoHydraulic systemGerman REXROTH
1Oil pumpUSA SUNNY
2Seal ringJapan VALQUA
3Tubing connectorGerman EMB
4ElectricalSchneider
5Ball screwTaiwan HIWIN
6Linear guideTaiwan HIWIN
7Servo motor ESTUN
8CNC systemDA41 CNC system ( More CNC system for optional )

Technical parameter


NoWE67K-40T/2500ValueUnit
1Normal pressure400KN
2Worktable length2500mm
3Distance between holes1850mm
4Depth of throat230mm
5Ram travel100mm
6Max opening height320mm
7Main power5.5KW
8Weight3000KG
9Dimension2500*1200*1910mm

Main Features


1. Welded steel structure, by normalizing and high-frequency vibration to eliminate stress, to ensure
the overall accuracy of machine tools, has excellent rigidity, anti-distortion, and anti-tilt capability.

2. Thickening of the table plate, the slider, so that the machine has high rigidity and overall welding
machine frame after a one-time process, so slider ,worktable have less deformation of the work
piece while bending, and the final product have excellent straightness and angle consistency.

3. Torsion shaft synchronization mechanism for the slider synchronous mechanism and the
mechanical stopper mechanism, stable and reliable.

4. Back gauge distance, the slide stroke adjustment controlled by servo motor and CNC system.
Back gauge adopts precision ball screw, linear guide, synchronous belt wheel drive, run fast,
accurately positioning data.

5. CNC system adopts two-axis servo control technology, set and saved hundreds of bending
programs,each consists of a plurality of machining step programming.

6. Front feeding device moves lateral through precision linear guide, easily control the spacing
between the arms.

7. Adjustable height level, which greatly improves the convenience of the work piece bending.

8. With fast clamp pallet bending mold, compatible with deflection compensation mechanism,
in order to guarantee high bending accuracy (To improve the accuracy , Hydraulic convex
compensation table or Inclined wedge machine workbench compensation can be optional)

9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door
cut-off function, emergency stop button around front and back, protective cover foot switch to
ensure safe working

Our service


Pre-sales Service:
1. Inquiry and consulting support.
2. Sample testing support .
3. Recommend the most suitable machine according to customer's purpose.
4. Factory visiting welcomed.
After-sales Service:
1. Training how to install the machine .
2. Training how to use the machine .
3. Warranty 1 year.
4. Engineers available to service machinery oversea .

Package and shipping


1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
2)before loading,stable package,professional and skilled loader reduce damage of product during transport.
3)we fixed our machine in container by steel wire inside which will be protected well during shipping
4)unloading, we use the wooden cabinet, protect the machine and can be easily used forklift to unloading machine.

Our Workshop


ACCURL Machinery is a professional manufacturer of CNC sheet metal. We focus on R&D and have advanced
production equipment as the backing, first-class testing equipment as the cornerstone of the international
quality system as the stand to produce high-quality products.

FAQ


How about your machine quality? We are worry about the quality.
RE: DURMARK is a mature brand in CHINA,through many years research in technology,
our design including structure and detailed sercurity and precision has enhanced greatly,
and can match all the CE standard or more strict standard.Our machines distribute worldwide
to about 50 countries where there are metal plate industry ,there are Brillante machines.
And where there are our machines,there are good reputation and terminal user satisfaction

2. Whether the machine price can be more discount?
RE: 1.DURMARK always provide high quality machine, with 10years experiences,
our machine has enough qaulity standard to make sure the machine can work more than
the real warranty period. In this way ,we will save a lot and think in advance for the clients.
RE: 2. Actually DURMARK also think about our price level,we are sure to provide
quality=price and pice=quality ,the matched price and acceptable for the clients and durable
for our machines. We welcome you negotiate with us and get a good satisfaction.

3. How about your manufactory in China?
RE: DURMARK located in Ma'anShan City, AnHui province which is the leading area in China
and also in the worldwide as the center of the metal plate solution machines,We have worked
about 10 years in this area.Rich experiences in this field with professional technical supporting
and oriented service.


Production Capacity: 60sets/Month
Payment Terms: L/C, T/T, Western Union, Paypal, Money Gram
Waterproof Rating: IPX-8
Warranty: 1-year
Condition: New
Certification: RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
Automation: Automatic
Suitable for: Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

, ,
