curtain track bending machine cnc hydraulic press brake for sale

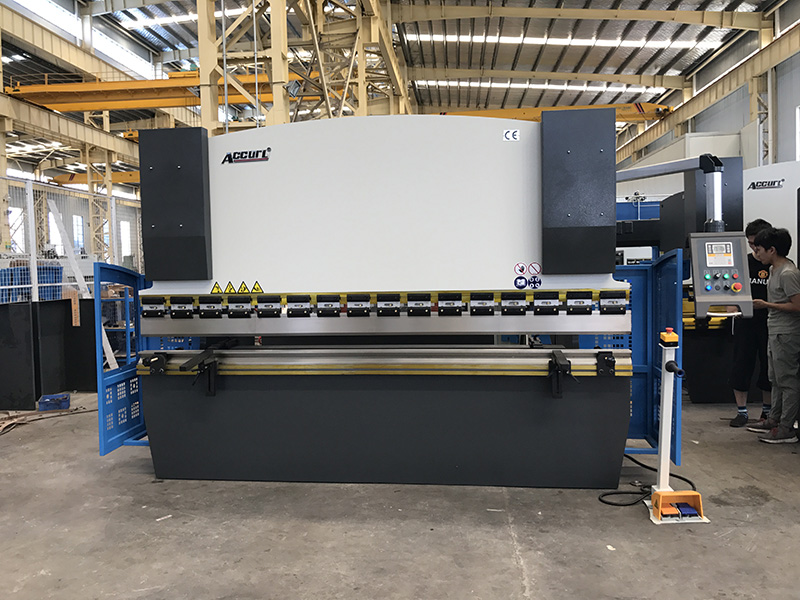

automatic tracking system press brake

press brake specifications

hydraulic drive
easy to be operated, manual operation
Multi-V lower die
ISO9001-2008 standard
CNC press brake servi synchronization bending machine

Torsion axis bending machine CNC servo

This aluminum composite panel press brake has higher labor productivity and higher working accuracy,using different shapes of upper and lower die, can be folded into a variety of shapes of workpiece,slider stroke can be a single bending forming, after many times blending to get more complexshape of the workpiece, when equipped with the appropriate equipment, but also for punching.

Specification of press brake

Model



Nominal

pressure

(KN)

Table length

(mm)

Distance between

stand(mm)

Throat

depth

(mm)

Slide stroke

(mm)

Stroke

(Min-1)

Maximum

opening

height

(mm)

Main motor

power

(KW)

Dimensions

(mm)

WC67Y-50/250050025002000250120≥163205.52600*1400*2000
WC67Y-50/320050032002600250120≥163205.53300*1400*2200
WC67Y-63/250063025002000250120≥143355.52605*1725*2200
WC67Y-63/320063032002600250120≥143355.53300*1725*2355
WC67Y-80/250080025002000250120≥143357.52605*1725*2355
WC67Y-80/320080032002600250120≥143357.53300*1725*2405
WC67Y-80/400080040003100280120≥143357.54210*1550*2300
WC67Y-100/2500100025002000320120≥123857.52560*1320*2510
WC67Y-100/3200100032002600320120≥123857.53260*1320*2510
WC67Y-100/4000100040003100320120≥123857.54060*1320*2760
WC67Y-125/3200100032002600320120≥123857.54060*1320*2760
WC67Y-125/4000125040003100320120≥123857.54080*1825*2430

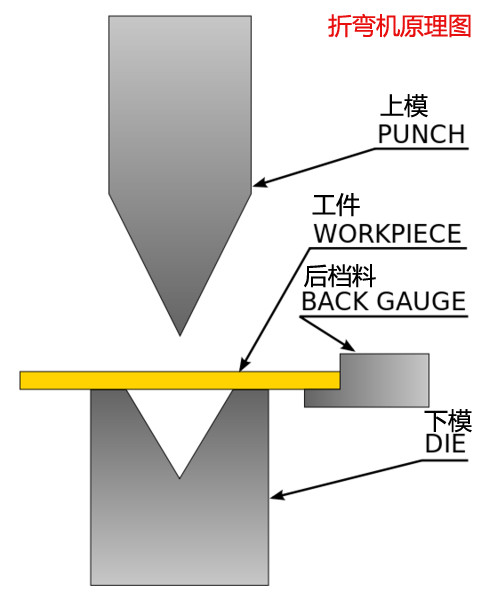

press brake working principle

Formula of Pressure Calculating press brake
1. Thickness *thickness *65*length/thickness*8 for example:
thickness 6mm, length 2.5m

Pressure=6*6*65*2.5/6*8=121.875 ton
The above formula is suitable for mild steel, if the material is stainless steel, then the formula should be:
2. Thickness*2*thickness*2*65*length/thickness*2*8, that means double strength of stainless steel, for example:
stainless steel thickness 6mm, length 2.5m
Pressure=6*2*6*2*65*2.5/6*2*8=243.75 ton

back gauge and the sliding block have electrical adjustment for their stroke with manual fine tuning and digital indication.

Advantages

cnc hydraulic press brake for sale performance and feature:

- Holistic welding structure, annealing treated
- Hydraulic top-drive, steady & reliable
- Mechanical stop and steel torsion bar, maintain synchronization & precision
- Electrical adjustment, manual fine adjustment CNC press brake manual sheet metal folding machine
- Backgauge & stroke digital displayed
- Deformation compensation on throat, certain the bend precision

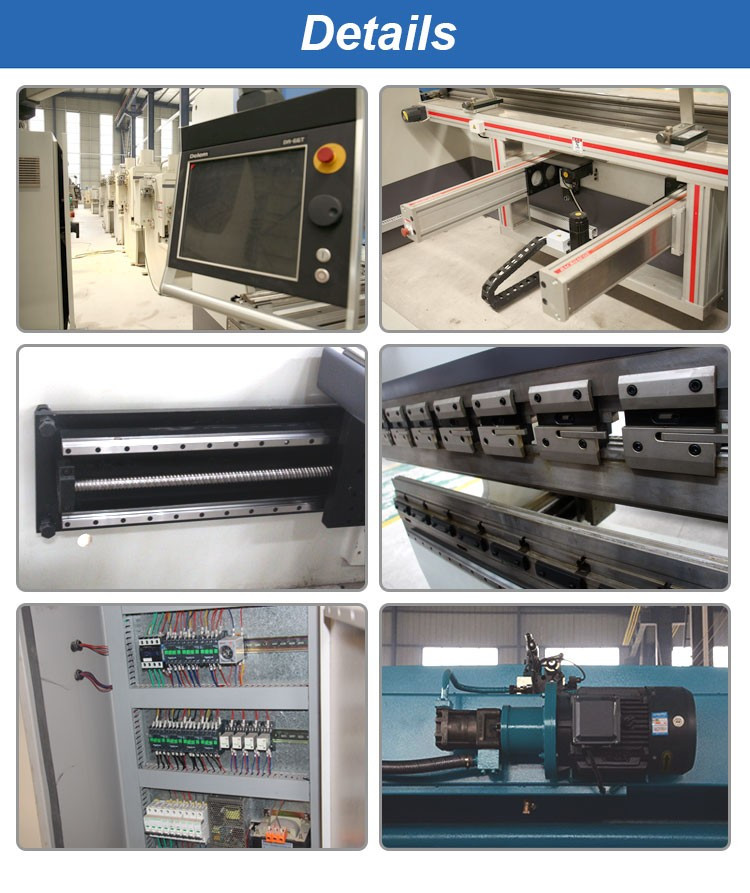

CNC press brakes details:

We have established a global service information processing systems, 24-hour tracking customers.
1, the date of metal sheet folding machines arrival, enjoy free software upgrades.
2, from the date of purchase CNC press brake manual sheet metal folding machine, welcome to participate in various technical training courses at any time
3. foreign customers we respond in less than 10 hours to make maintenance services within 72 hours.
If you are interested related products and models, pls contact our sales manager to confirm the model parameters. Or send us the sample material, we give you free samples, or direct visit our Baiwei Laser fieldwork.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: WC67Y-80/3200
Machine Type: Press Brake
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Carbon Steel
Power:Hydraulic
Automation: Automatic
Extra Services: Machining
Certification: CE
After-sales Service Provided: Engineers available to service machinery overseas
Nominal pressure: 800KN
Table length: 3200MM
Distance between stand: 2600MM
Throat depth: 250MM
Product name: cnc hydraulic press brake for sale
Slide stroke: 120mm in mins
Stroke (Min-1): more 14
Max open height: 335mm
Main motor power: 7.5kw
