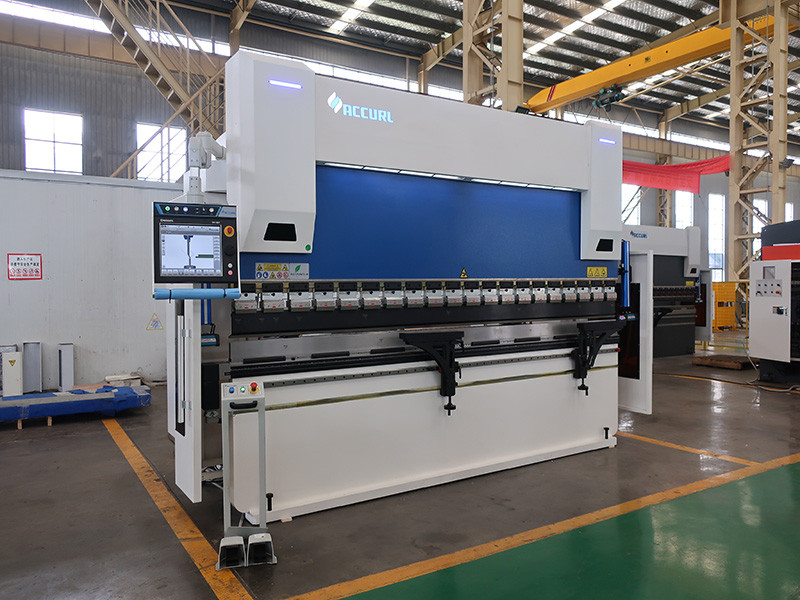

WC67K series economic type CNC hydraulic press brake of high quality

economic cnc press brake price

Product Description

1.The main machine adopts the structure of series WC67Y hydraulic brake.

2. Special CNC system for press brake(double axles).

3.The drive element of backgauge adopts imported ball screw and linear guideway.

4. Mechanical stop and torsion bar to maintain synchronization and high precision.

5.The machine uses Delem VC system, and imported linear transducer,pressure proportional valve and servo motor.

6. Ram stroke(Y) and backgauge(X,R,Z) are automatically controlled by computer.

7. Backgauge adopts ball-bearing screw and rolling guide, enjoying very high repeat positioning accuracy.

Product Details

1. CNC hydraulic press brake

2. CNC hydraulic bending machine with deflection compensation devices

3.CNC hydraulic press brake with synchronous torque

4. Automatic bending machine with CNC control system

5.Hydraulic plate benders adopt with long work table

6.Bending press machine adopt with Mitsubishi PLC

7.Hydraulic bending press with kinds of models

8.Metal bending machine with digital display system of back gauge

Product Specifications

Item	Unit	WC67K-40/2000	WC67K-40/2500	WC67K-63/2500	WC67K-80/2500	WC67K-80/3200
Nominal Force	KN	400	400	630	800	800
Length of table	mm	2000	2500	2500	2500	3200
Distance between uprights	mm	1650	2000	2000	1990	2600
Throat Depth	mm	200	200	250	280	280
Ram stroke	mm	100	100	100	100	100
Stroke Adjustment	mm	80	80	80	80	80
Max. opening height	mm	330	330	340	360	360
Strokes	min^-1	11	11	10	10	10
Main Motor Capacity	KW	4	4	5.5	7.5	7.5
Net Weight	KG	3000	3600	4600	4800	6180
Outline Dimensions(LWH)	mm	250019002240	295019202240	310018902220	312019102300	382019252300

tem	Unit	WC67K-40/2000	WC67K-40/2500	WC67K-63/2500	WC67K-80/2500	WC67K-80/3200
Nominal Force	KN	400	400	630	800	800
Length of table	mm	2000	2500	2500	2500	3200
Distance between uprights	mm	1650	2000	2000	1990	2600
Throat Depth	mm	200	200	250	280	280
Ram stroke	mm	100	100	100	100	100
Stroke Adjustment	mm	80	80	80	80	80
Max. opening height	mm	330	330	340	360	360
Strokes	min^-1	11	11	10	10	10
Main Motor Capacity	KW	4	4	5.5	7.5	7.5
Net Weight	KG	3000	3600	4600	4800	6180
Outline Dimensions(LWH)	mm	250019002240	295019202240	310018902220	312019102300	382019252300

Configurations of main components:

Name	Brand	Configuration	Name	Brand	Configuration
Circuit Breaker	Schneider, France	S	Security Light Curtain	SENSORC, China	S
Thermal Relay	Schneider, France	S	Motor	Quality product, China	O
Intermediate Relay	Schneider, France	S	Oil Pump	Quality product, Taiwan	O
Power Source	Schneider, France	S	Hydraulic Valve	Tian Li, Beijing	O
Button	Schneider, France	S	Sealing Element	NOK, Japan	S
Time Relay	SIEMENS, Germany	S	PLC	MITSUBISHI, Japan	O
Transformer	Bright, Wuxi	S	TPC	MCGS, China	O

Notes: S stands for standard configuration, and O stands for optional configuration

Applications

WC67K Series Hydraulic CNC plate bending machine by computer aided design for bending sheet metal with higher labor productivity and higher working precision. The machine adopts steel plate welded structure, with sufficient strength and stiffness, different shapes of the upper and lower mold parts can be bent into various shapes, slide stroke once on sheet metal bending forming, bending can be obtained after several more complex shaped workpieces, when equipped with the appropriate equipment, it also can be punching with a beautiful appearance.
