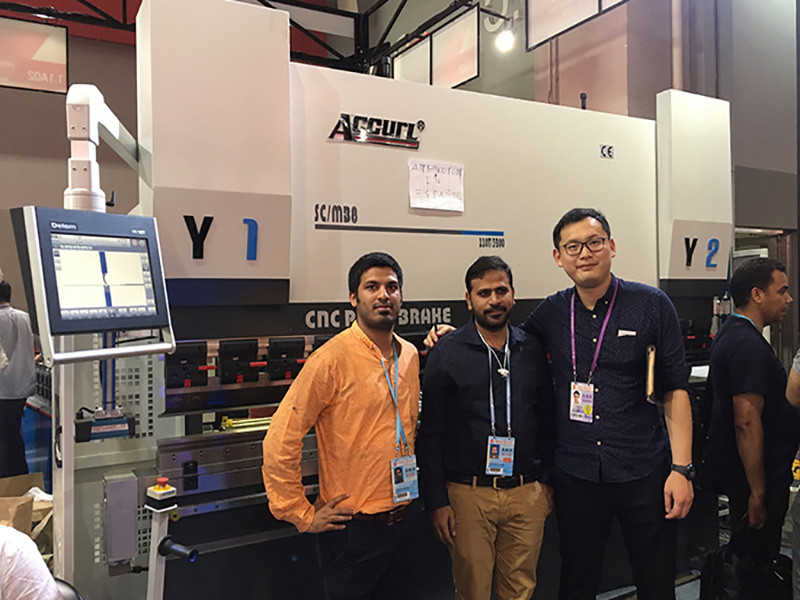

vertical press brake

vertical press brake

1. Description

(1) Powerful, easy to learn hydraulic system
Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production. 2 encoder-controlled hydraulic cylinders move the top beam. Digital readout displays the position of the downward stroke, so you can fine-tune a bend and make it right every time. It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel). You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape. 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam. Foot pedal brings the stroke up and down, leaving your hands free to position the material.
Motorized back gauge rides on a solid ball screw trolley mechanism. Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine. You can train your staff to use this press brake in 5 minutes.
(2) Rigid structure and low maintenance
Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years. Robust 2,640-pound construction supports the hydraulic pressure, so the machine won’t buckle at full capacity. Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke. Accepts standard press brake tooling, giving you a wide variety of options.
Comes with front material rests (or support arms), which some competing machines do not include. 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam. 4 grease zerks let you add oil every few months. Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.

2. Advantages

Our press brakes benefit your bottom line with higher quality parts, faster cycle times, lower operating and maintenance costs. Whether your application requires bending simple shapes or complex parts, we have a press brake to match your needs and your budget. HI-SEA Marine’s press brakes are designed for reliability, repeat-ability, precision, performance and ease-of-operation.
We offer several series of press brakes with features and options tailored to different manufacturing environments. Each series offers a range of lengths and tonnages. HI-SEA Marine can also custom design and manufacture a press brake to your exact needs.
All our brakes are designed for high performance. Five key design features will increase your productivity and decrease your per part cost. Design innovations based on our years of experience have resulted in faster and more accurate speeds on the ram approach, bending, return and back gauge positions.
These five innovations are:
(1) Rigid mono-block frame of mill certified high-yield steel for minimum deflection under load resulting in more consistant performance.
(2) Synchronized dual cylinders and valves assure smooth, stable ram motion for high-quality precision ram positioning accurate to within 0.0004 inch.
(3) Deeper throat dimensions allow you to form more parts, the full length of the machine.
(4) Large daylight opening gives you versatility to handle larger range of parts.
(5) Extra stroke length also gives you more versatility.

3. Technical Parameters

ModelNominal Pressure (kn)Length of Working Table (mm)The Distance between Column (mm)The Depth of Throat (mm)Slide Stroke (mm)The Max. Open Height between Table and Sliding Bloke (mm)Motor Power  (kw)Dimension (mm)

Our Services

1. Quality Assurance
All our products are strictly manufactured in accordance with the production standards. Before being issued the product quality certification, all products are inspected and accepted by the technical inspection department of the manufacturing plant.
2. Product Customization Service
Our company can supply both standard and non-standard products to meet your various needs. We can customized products according to your drawings.
3. Providing Classification Society Certificates
We can supply various certificates of Classification Societies: CE, ISO.
4. Excellent Pre-sale and After-sale Service
Our salesmen are adhering to the trading principles of being honest and trustworthy, fair and equitable to provide excellent and satisfactory service for our customers.

, ,
