QC12Y sheet metal plate swing beam hydraulic shearing machine

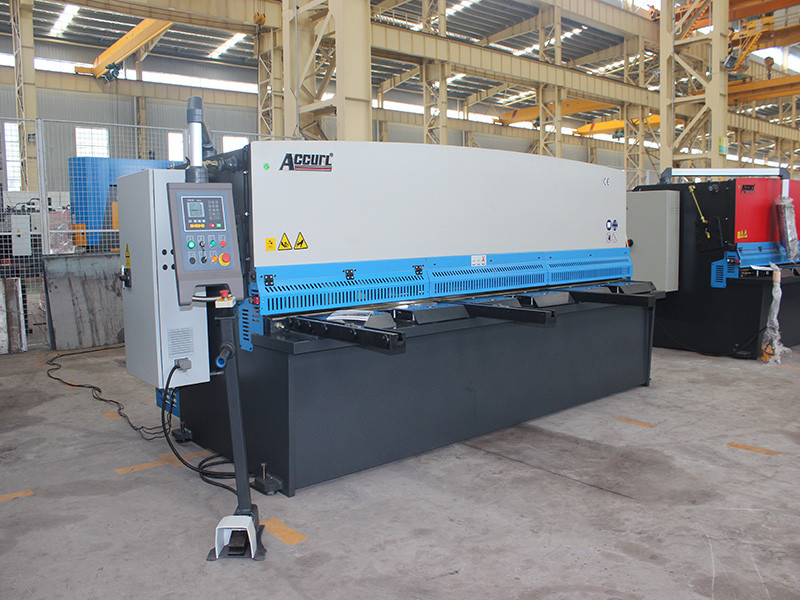

hydraulic shearing machine 6x3200

Product Application

QC12Y hydraulic swing beam shearing machine is the sheet metal industry under the cutting tool, Widely used in industrial machinery, metallurgical industry, automobile, shipbuilding, electrical appliances, engineering equipment, sheet metal processing, steel pipe welding, electronic industry, aerospace industry, agricultural machinery manufacturing, dining furniture machinery industry.

Machine Model
Max Cutting Thickness
Max Cutting Length
Strength of shearing sheet
Shearing Angle
Max Length of Back Gauge
Stroke Number
Blade Length
Height of Worktable
Main Motor Power

Main Features

1. Totally European design, streamlined looking. Monoblock steel welding frame and stress relief process by Annealing treatment.
2. This hydraulic shearing machine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
3. Triple support rolling guide to eliminate gaps of support and enhance shearing quality.
4. Sliding balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
5. All seals in cylinder is imported, the most famous brand, good quality and high performance
6. Overload overflow protection is outfitted to hydraulic system, which can assure no leakage
7. The distance of the backgauge is adjusted by the motor.
8. Digital display device for distance of back gauge and shearing times available.
9. Adopt handwheel to rapidly and accurately adjust the blade clearance
10. Adopt integrated hydraulic system, more reliable and easy for maintenance. The hydraulic system consists of motor, oil pump and valve groups and it is installed at the top of the oil box.
11. Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
12. Humanistic concern security design in all details and also the scientific details through KINGWELL standard.

Standard Equipment

1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. High quality, hardened and grinded top and bottom blades. Tope blades with two cutting edges and bottom blades with four cutting edges.
3. Counter of Strokes, Cutting Length Adjustment
4. Hydraulic and Electrical overload protection
5. Squaring Arm and Front Support Arms
6. Built-in Spring Pressure Cylinder
7. SIEMENS Motor or China XINYU High Quality Motor (Because SIEMENS motor made in China has long delivery period, if the special voltage , we will not use SIEMENS unless the client can accept the long delivery period for machine also. Mostly the normal voltage , the delivery is 30-40 working days for motor. We also use a lot of Motor named CHINA XINYU, its quality has been proved with several years working. )
8. Germany Bosch Rexroth Hydraulic System or CHINA Top Level HONGWEI Hydraulic System.
9. USA SUNNY Hydraulic Gear Pump or CHINA Shanghai YONGMING High Quality Hydraulic Gear Pump which is used for Chinese Aircraft Industry.
10. JAPAN VALQUA sealing parts .
11. Germany JS tubing connector
12. Germany SIEMENS or France SCHNEIDER Main Electric Elements.
13. HIWIN Ball screws & Polished rod with 0,05mm accuracy.
14. CNC or NC controller system is optional

Configuration Structure

Integral welding, high strength, good rigidity, on the moving type bending, low noise ,smooth work.

Main Motor
Top brand main motor, with strong power.

Hydraulic System
The shear adopts the best quality cylinder valve and pump to ensure high performance and high reliability, no oil leakage and fault.

Electrical Cabinet
Adopt famous brand Germany Siemens key electrical parts to improve the reliability.

Ball Worktable
Can reduce the sheet metal contact with the workbench, reduce working intensity.

Safe and Built-in Spring Pressure Cylinder

The guard fence is equipped to protect the operator.
The lower end of the built-in spring pressure cylinder is equipped with special material gasket, avoiding the metal plate being imprinted.

Blade Clearance Adjustment
Rapid adjustment mechanism for rearranging blade clearance, easy operation by hand, realizing stepless adjustment of blade clearance.

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Model Number: QC12Y-8X3200
Voltage: 220V/380V/415V/440V/customized
Rated Power:11KW
Dimension(L*W*H): 3910*1730*1880mm (L*W*H)
Weight: 7000KG
Certification: ISO
Warranty: One Year
After-sales Service Provided: Engineers available to service machinery overseas
Product name: QC12Y-8X3200 Hydraulic Shearing Machine
Type: Metal Sheet Cutting Machine
Color: Customized
Cutting material: Metal Stainless Steel Carbon Steel Aluminum
Application: Industrial Metal Cutting
Cutting mode: Swing Beam Cutting Machine
Cutting thickness: 0-8mm Carbon Steel
Cutting width: 3200mm
Blade: Alloy Steel
Electrical Equipment: Siemens Germany

, , , , , ,
