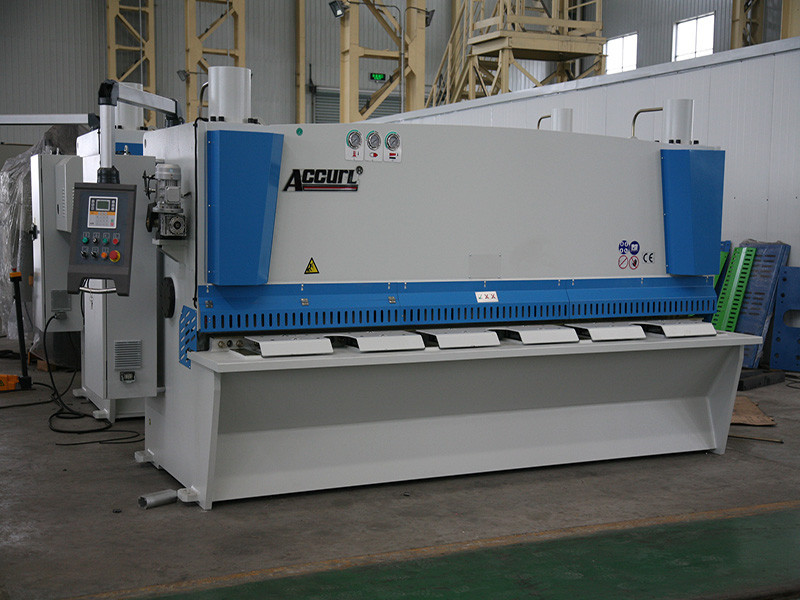

hydraulic guillotine shearing machine

6m plate shearing machine

Description of Hydraulic guillotine

Hydraulic shears is by moving the upper blade and a fixed down blade, using reasonable blade clearance, shear force is applied to the metal plate so that the plate separation by size needed break. That specially for the aviation , the llght industry, the building , the electic power and so on .
1.Hydraulic dive, swing beam. Whole weld knife rest works smoothly and quickly, and is prompt by accumulator Nitrogen cylinder.
2.Possessing a speed blades gap adjusting device, permit to adjust the blades gap.
3.The stroke and frequency of shearing can be controlled. The machine has the function of single shearing and automatic continuous shearing.
4.The stroke and frequency of shearing can be controlled. The machine has the function of single shearing and automatic continuous shearing.
5.After inputting precomputed data, the back gauge can be automatically moved, positioned and stopped.
6.The vertical gripper of intellect position is controlled by pneumatic system.

Features of Hydraulic Guillotine:

1,numeric-control system is fitted ,and there are also many other types for optional, Delem , Estun and so on.
2,Multi-work-step programming function is able to achieve an automatic operation and continuous positioning of multi-step procures, as well as an automatic precision adjustment for positions of rear stopper.
3.Adopt integrated hydraulic system, more reliable and easy for maintenance.
4. Steel welded structure ,Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
5.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
6.The Guillotine main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the shearing process and under extreme continuous loads.
7.This heavy duty over driven style, fixed rake guillotine has been developed for shearing material from mild steel through to stainless steel due to the specially designed shearing blades with characteristics of a). High resistance to wear,b). High resistance to corrosion, c). High resistance to impact & d).High tensile strength.
8.USA Hydraulic control valve unit supplied by Omega.

Parameters

No
Model
Max cutting thickness
Max cutting length
cutting

angle
Ram

 strokes
Back

stop
 range
Motor
Machine size
mm
mm
.
n/min
mm
kw
mm
1
4x2500
4
2500
1.3
18
20-600
4
3150x1650x1700
2
4x3200
4
3200
1.3
18
20-600
5.5
3840x1675x1600
3
4x4000
4
4000
1.3
12
20-600
5.5
4640x1850x1750
4
4x5000
4
5000
1.3
10
20-600
7.5
5660x2050x1900
5
4x6000
4
6000
1.3
7
20-800
7.5
6730x2250x2500
6
6x2500
6
2500
1.3
18
20-600
7.5
3130x1675x1600
7
6x3200
6
3200
1.3
14
20-600
7.5
6840x1675x1620
8
6x4000
6
4000
1.3
14
20-600
7.5
4630x1850x1700
9
6x5000
6
5000
1.3
12
20-800
11
5660x2050x1950
10
6x6000
6
6000
1.3
10
20-800
11
6700x2300x2300
11
8x2500
8
2500
1.3
12
20-600
11
3130x1530x1600
12
8x3200
8
3200
1.3
10
20-600
11
3840x1675x1620
13
8x4000
8
4000
1.3
8
20-600
11
4630x1850x1700
14
8x5000
8
5000
1.3
7
20-800
15
4630x2050x1950
15
8x6000
8
6000
1.3
6
20-800
15
6750x2330x2230
16
10x2500
10
2500
1.3
12
20-600
15
3130x1580x1800
17
10x3200
10
3200
1.3
10
20-600
15
3840x1725x1850
18
10x4000
10
4000
1.3
8
20-600
15
4650x1900x1850
19
10x5000
10
5000
1.3
8
20-800
15
5600x2000x1950
20
10x6000
10
6000
1.3
8
20-800
18.5
6800x2100x2050
21
12x2500
12
2500
1.3
12
20-600
18.5
3235x2045x1935
22
12x3200
12
3200
1.3
10
20-600
18.5
3945x2227x2115
23
12x4000
12
4000
1.3
8
20-600
18.5
4695x2227x2200
24
12x5000
12
5000
1.3
7
20-1000
22
6100x3370x3050
25
12x6000
12
6000
1.3
6
20-1000
30
7100x3370x3050
26
12x8000
12
8000
1.3
5
20-1000
37
8880x2480x3000
27
16x2500
16
2500
2
8
20-600
22
3235x2050x1985
28
16x3200
16
3200
2
7
20-600
22
3395x2230x2158
29
16x4000
16
4000
2
6
20-600
22
4800x2330x2258
30
16x5000
16
5000
2
5
20-1000
30
6200x2430x2358

Quick Details

Condition: New
Place of Origin: Anhui, China (Mainland)
Brand Name: ACCURL
Model Number: QC12Y
Voltage: 220V/380V
Rated Power: 4~450kw
Dimension(L*W*H): 7300x3900x5100mm
Weight: 10000KG
Certification: CE ISO
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Name: QC12Y Hydraulic Guillotine
Product name: guillotine shear cutter
Type: Hydraulic Cutting Tools
Machine type: guillotine metal cutting machine
