servo power source and used amada cnc turret punch press

cnc turret punch press used

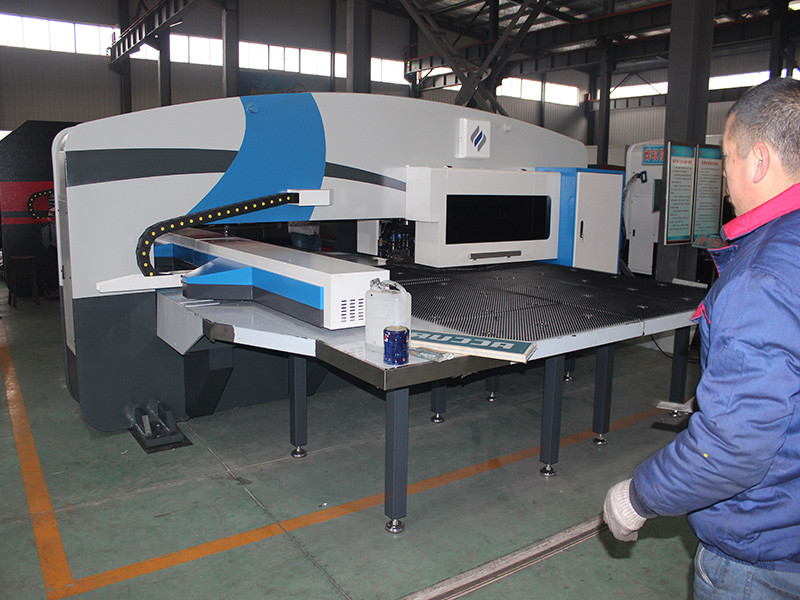

CNC Turret Punch Press D-T3024x2 for perforating Al Panel, Aluminum Curtain Wall Fabrication is a fully automatic punching system for large area Aluminum sheet perforating, which consists of Turret Punching Machine with deep throat, large Feeding Table and CNC System.

Description and Features

High Speed, Reliable and High Cost-performance Ratio.

Special designed for Large Al sheet of Curtain wall.

Mechanical punching press, stable, reliable and easy for operation and maintenances

Independently developed CNC system, which will be upgraded periodically, and allow automatic conversion and punching from Auto CAD.

Automatic reposition function, better for large volume production.

Control unit: the industrial integration PC, shockproof, suitable for anti-jamming workstation work environments.

Inserted-sleeve Turret ensuing axiality of upper and down punching die as well as long usage life

Electric and Pneumatic are famous brand

linear guide way and precision ball screw.

Table surface with nylon brushes and balls, Unique designed, adjustable auxiliary table, for convenience of exchanging mold.

O type close press house, weld structure, stress relief annealed.

Specific clamp retract function. Automatic protection for the Clamps and no dead area for punching on sheet.

Centralized lubricating system

Die station allocated in Turret.

Product Feature

1. High-intensity, high-rigidity steel plate welding structure bed.
2. Hydraulic system drive, stable, low noise.
3. Adopt long-oriented, international general structure, to facilitate matching.
4. Inlaid with high-quality wear-resistant lining, convenient maintenance and long service life.
5. Full-featured CNC System.
6. Imported FAGOR control system.
7. Imported famous brand AC servo motor. To ensure high-speed, good stability and high precision.
8. Imported Ball Screw.
9. Imported Precision Linear Guide way.
10. Universal ball bearing material or fine brush units, to protect the work piece from being scratched.
11. Reasonable Price.

Station TypeTool Size(mm)24 station Turret

Technical Data

Punching Capacity:300KN

Max. sheet size :2500×1250mm

If repositioning :5000×1250mm

Max. thickness: 4mm

Die Stations:24, including 2 auto index stations

Distance accuracy between holes :±0.1 mm

Rate Hit rate:280HPM

Max. Feeding Speed:80m/min

Life Cycle of punching Die:500,000.00 hits

3-Axis Controlled X-Axis, Y-Axis and T

PneumaticClamps: 2

Power Supply: 7200W

Pneumatic pressure:0.55MPa

Overall Size:5000×4000×2100mm

Net weight :11500kg

Quick Details

Condition: New
CNC or Not: CNC
Power Source: Mechanical
Place of Origin: Shanghai, China (Mainland)
Brand Name: ACCURL
Voltage: 380V
Power(W): 7.5KW
Weight: 11.5T
Dimension(L*W*H): 5000*4000*210
Certification: ISO9001
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
model: D-T3020X2
brand name: metform for used turret punch press
colour: upon request for used turret punch press
product name: used turret punch press
place or origin: shanghai for used turret punch press
packing: plywood case for used turret punch press
price: negotiable for used turret punch press
condition: new for used turret punch press
payment terms: west union T/T L/C for used turret punch press
MOQ: 1 set for used turret punch pres
